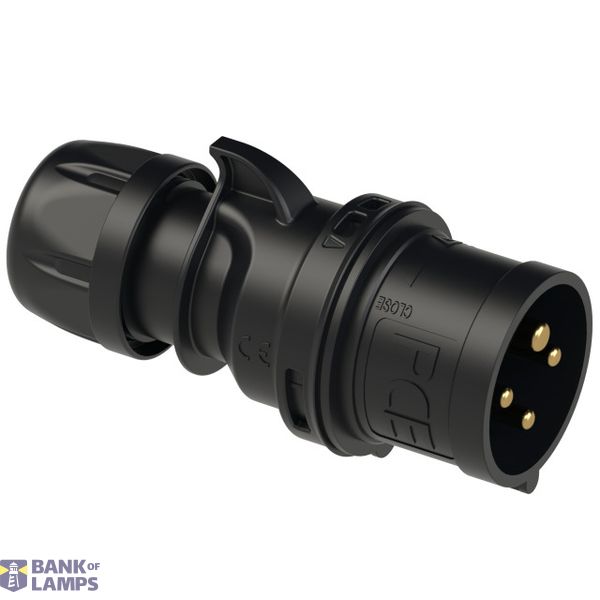

MD01 image 1

CEE-plug 20A 3P4W 12h IP44 UL

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-plug 20A 3P4W 12h IP44 UL
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000140
Number of poles 4
Connection system Screwed terminal
Degree of protection (IP) IP44

Packing details

Packing level 1 9003399186981

Other Technical data

Cable entry Gland nut
Material Plastic
Surface treatment contacts Untreated
Amperage according to UL/CSA (for UL-version) 20 A
Angle of plug Straight
Contact material CuZn
Clock hour position 12 h

Downloads

Description

CEE-plug 20A 3P4W 12h IP44 UL (PCE420P12S)
housing material: PA6
rated current: 20A
number of poles: 3P4W (4p)
clock position: 12h
rated voltage: 120/250Vac single phase
contacts: brass
connection technology: screw terminals
IP protection class: IP44
