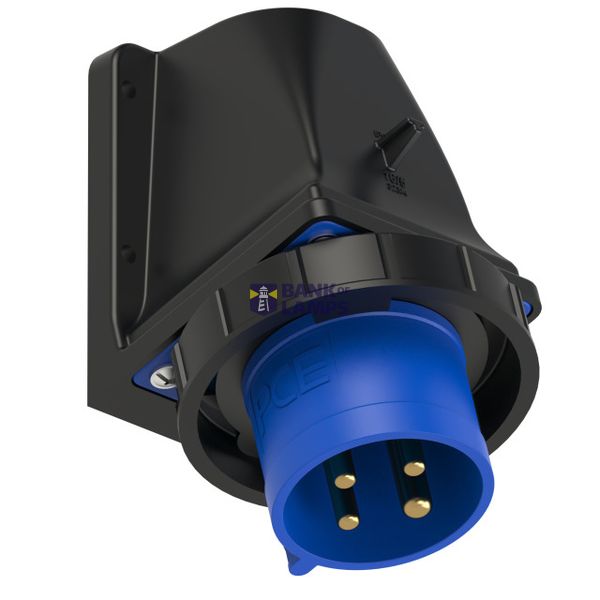

CEE-inlet wall mount 30A 3P4W 9h IP67 UL

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-inlet wall mount 30A 3P4W 9h IP67 UL
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001319
Material Plastic
Surface treatment contacts Untreated
IEC-amperage 32 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP67

Packing details

Packing level 1 9003399445095

Other Technical data

Construction type Surface mounted plug
Number of poles 4
Amperage according to UL/CSA (for UL-version) 30 A
Angle of plug Angled
Clock hour position 9 h
Identification colour Blue

Downloads

Description

CEE-inlet wall mount 30A 3P4W 9h IP67 UL (PCE430BS9W)
housing material: PA6
rated current: 32A/30A
number of poles: 3P4W (4p)
clock position: 9h
rated voltage: 250Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP67
