  • CEE-inlet wall mount 30A 2P3W 6h IP44 UL

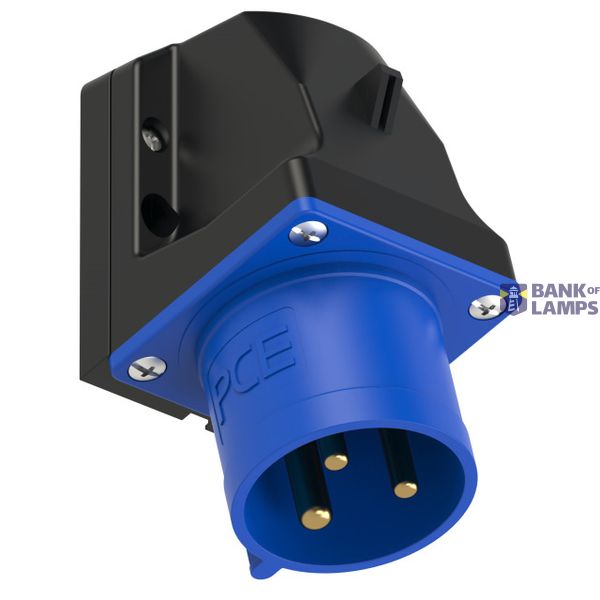

MD01 image 1
PCE

CEE-inlet wall mount 30A 2P3W 6h IP44 UL

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-inlet wall mount 30A 2P3W 6h IP44 UL
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001319
Material Plastic
Surface treatment contacts Untreated
IEC-amperage 32 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP44

Packing details

Packing level 1 9003399499944

Other Technical data

Construction type Surface mounted plug
Number of poles 3
Amperage according to UL/CSA (for UL-version) 30 A
Angle of plug Angled
Clock hour position 6 h
Identification colour Blue

Downloads

Product data sheet

Description

CEE-inlet wall mount 30A 2P3W 6h IP44 UL (PCE330BS6S)
housing material: PA6
rated current: 32A/30A
number of poles: 2P3W (3p)
clock position: 6h
rated voltage: 250Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP44
