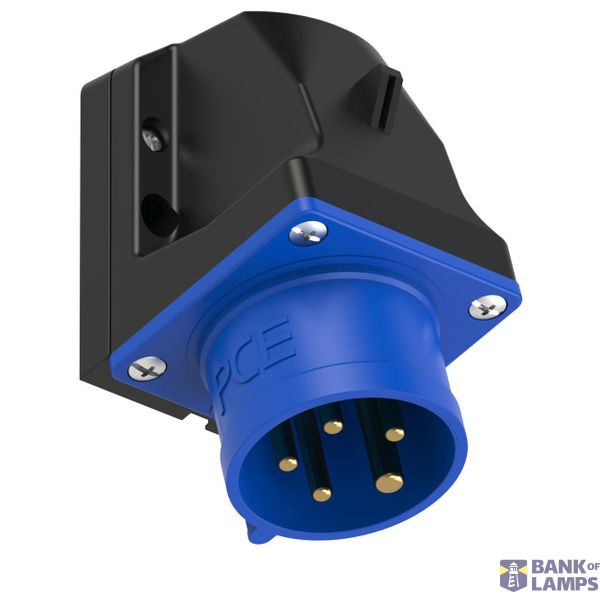

MD01 image 1

CEE-inlet wall mount 20A 4P5W 9h IP44 UL

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-inlet wall mount 20A 4P5W 9h IP44 UL
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001319
Material Plastic
Surface treatment contacts Untreated
IEC-amperage 16 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP44

Packing details

Packing level 1 9003399367823

Other Technical data

Construction type Surface mounted plug
Number of poles 5
Amperage according to UL/CSA (for UL-version) 20 A
Angle of plug Angled
Clock hour position 9 h
Identification colour Blue

Downloads

Description

CEE-inlet wall mount 20A 4P5W 9h IP44 UL (PCE520BS9S)
housing material: PA6
rated current: 16A/20A
number of poles: 4P5W (5p)
clock position: 9h
rated voltage: 120/208Vac
contacts: brass
connection technology: screw terminals
IP protection class: IP44
