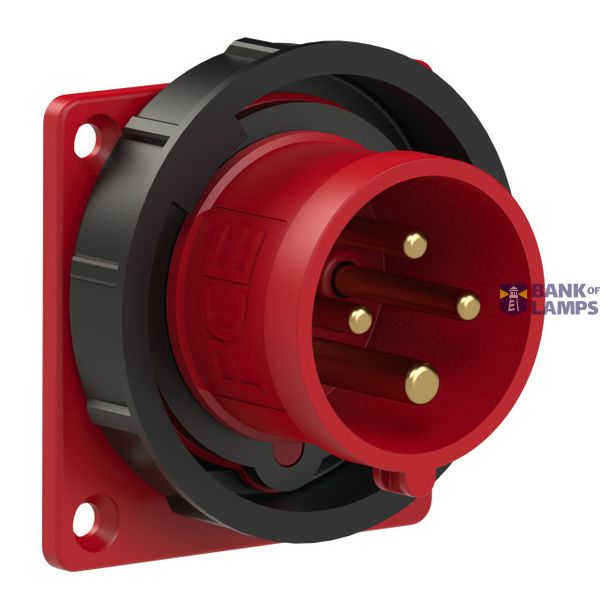

CEE-inlet flange 75x75 straight 20A 3P4W 6h IP67 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-inlet flange 75x75 straight 20A 3P4W 6h IP67 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Untreated
IEC-amperage	16 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399431883

Other Technical data

Construction type	Built-up device plug
Number of poles	4
Amperage according to UL/CSA (for UL-version)	20 A
Angle of plug	Angled
Clock hour position	6 h
Identification colour	Red

Downloads

Product data sheet

Description

CEE-inlet flange 75x75 straight 20A 3P4W 6h IP67 UL (PCE420B6W)
housing material: PA6
rated current: 16A/20A
number of poles: 3P4W (4p)
clock position: 6h
rated voltage: 380Vac
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 75x75mm / 60x60mm
IP protection class: IP67
