CEE-inlet flange 70x70 straight 30A 3P4W 9h IP44 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-inlet flange 70x70 straight 30A 3P4W 9h IP44 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Nickel-plated
IEC-amperage	32 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399489792

Other Technical data

Construction type	Built-up device plug
Number of poles	4
Amperage according to UL/CSA (for UL-version)	30 A
Angle of plug	Angled
Clock hour position	9 h
Identification colour	Blue

Downloads

Product data sheet

Description

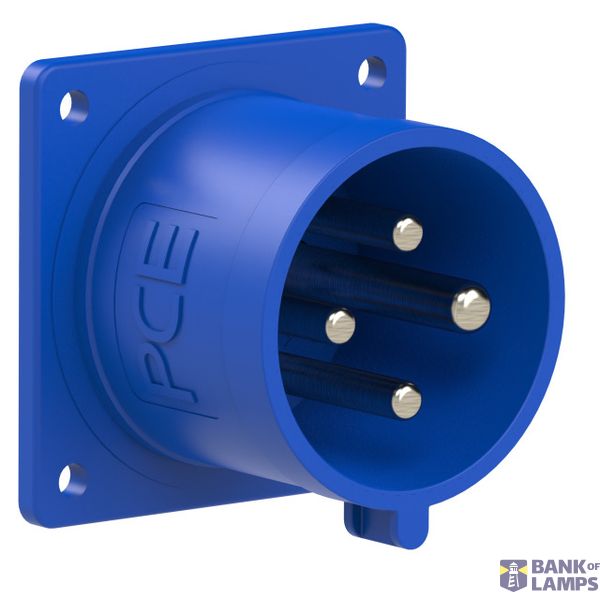

CEE-inlet flange 70x70 straight 30A 3P4W 9h IP44 UL (PCE430B9Sv)
housing material: PA6
rated current: 32A/30A
number of poles: 3P4W (4p)
clock position: 9h
rated voltage: 250Vac
contacts: brass nickel plated
connection technology: screw terminals
dimensions (flange/fixing center): 70x70mm / 56x56mm
IP protection class: IP44
