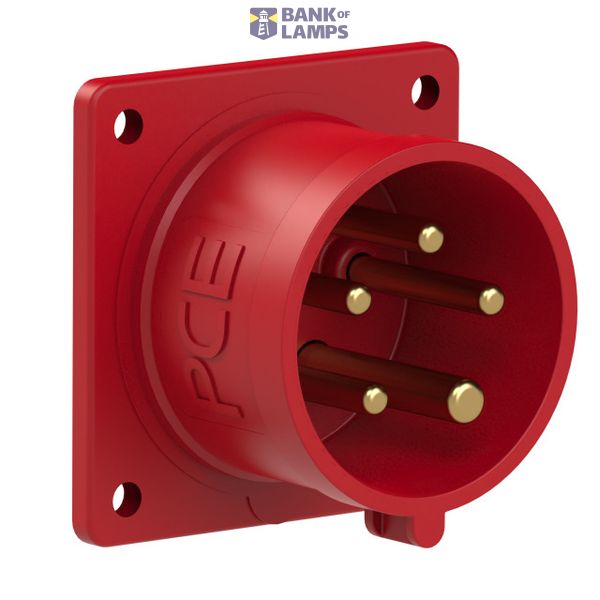

CEE-inlet flange 70x70 straight 20A 4P5W 7h IP44 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-inlet flange 70x70 straight 20A 4P5W 7h IP44 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Untreated
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399325632

Other Technical data

Construction type	Built-up device plug
Number of poles	5
Amperage according to UL/CSA (for UL-version)	20 A
Angle of plug	Angled
Clock hour position	7 h
Identification colour	Red

Downloads

Product data sheet

Description

CEE-inlet flange 70x70 straight 20A 4P5W 7h IP44 UL (PCE520B7S)
housing material: PA6
rated current: 20A
number of poles: 4P5W (5p)
clock position: 7h
rated voltage: 277/480Vac
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 70x70mm / 56x56mm
IP protection class: IP44
