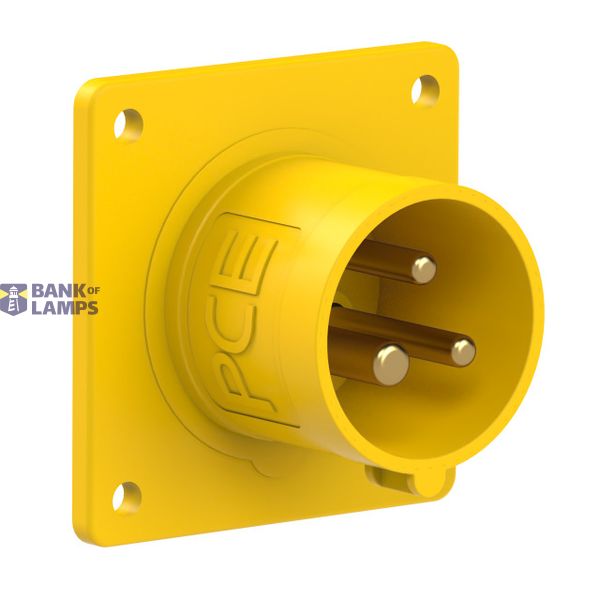

CEE-inlet flange 70x70 straight 20A 2P3W 4h IP44 UL

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-inlet flange 70x70 straight 20A 2P3W 4h IP44 UL
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Untreated
IEC-amperage	16 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399429729

Other Technical data

Construction type	Built-up device plug
Number of poles	3
Amperage according to UL/CSA (for UL-version)	20 A
Angle of plug	Angled
Clock hour position	4 h
Identification colour	Yellow

Downloads

Product data sheet

Description

CEE-inlet flange 70x70 straight 20A 2P3W 4h IP44 UL (PCE320B4S)
housing material: PA6
rated current: 16A/20A
number of poles: 2P3W (3p)
clock position: 4h
rated voltage: 120Vac
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 70x70mm / 56x56mm
IP protection class: IP44
