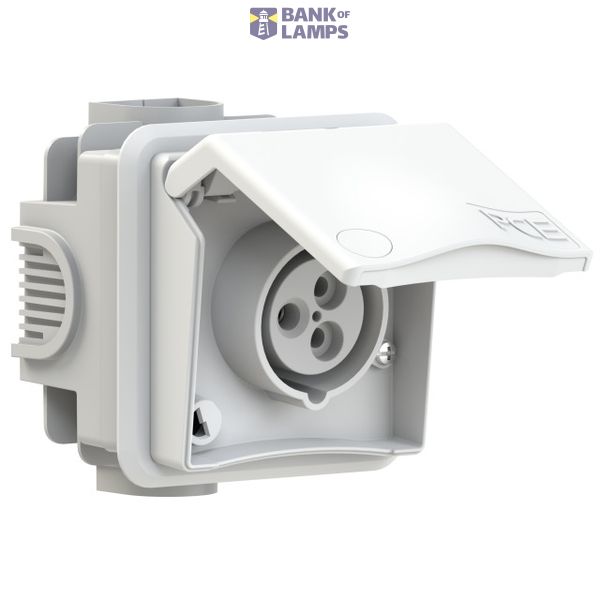

CEE-flush socket outlet incl. flush socket Design 16A 3p 9h IP44 (white)

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-flush socket outlet incl. flush socket Design 16A 3p 9h IP44 (white)
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001318
Current supply	CEE 16 A
Number of poles	3
Identification colour	Red

Packing details

Packing level 1

9003399707926

Other Technical data

Colour	White
RAL-number	9016
Construction type	Flush mounted socket with UP box
Surface treatment contacts	Nickel-plated
Configuration	Cover with text label
Contact material	CuZn
Clock hour position	9 h

Downloads

Product data sheet

Description

CEE-flush socket outlet incl. flush socket Design 16A 3p 9h IP44 (white)
housing material: PC/ABS
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 9h
rated voltage/frequency: 380-415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
color: white (similar to RAL 9016)
flush mounting (incl. Flush socket)
hinged lid with inscription field (optional: key lock)
IP protection class: IP44
