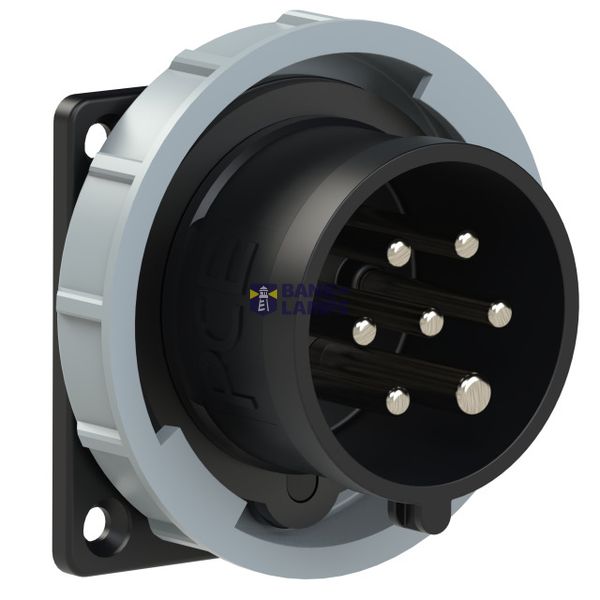

CEE-flanged plug straight (75x75mm) 16A 7p 7h IP66/IP67

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-flanged plug straight (75x75mm) 16A 7p 7h IP66/IP67
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
IEC-amperage	16 A
Connection system	Screwed terminal
Degree of protection (IP)	IP67
Voltage according to EN 60309-2	500 V (50+60 Hz) black

Packing details

Packing level 1

9003399468810

Other Technical data

Construction type	Built-up device plug
Number of poles	7
Angle of plug	Straight
Clock hour position	7 h
Identification colour	Black

Downloads

Product data sheet

Description

CEE-flanged plug straight (75x75mm) 16A 7p 7h IP66/IP67
housing material: PA6
rated current: 16A
number of poles: 7 (6P+PE)
clock-position: 7h
rated voltage/frequency: 480-500V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
dimensions (flange/fixing center): 75x75 mm / 60x60 mm
IP protection class: IP66/IP67
