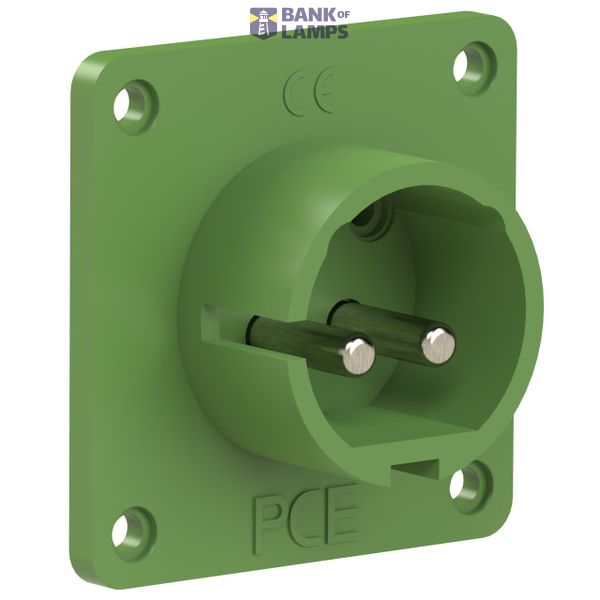

CEE-flanged plug straight 70x70mm 16A 2p 24/42VAC 400Hz IP44 TWIST

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-flanged plug straight 70x70mm 16A 2p 24/42VAC 400Hz IP44 TWIST
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
IEC-amperage	16 A
Connection system	Screwed terminal
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	20-25 V / 40-50 V (400 Hz) green

Packing details

Packing level 1

9003399427213

Other Technical data

Construction type	Built-up device plug
Number of poles	2
Angle of plug	Straight
Clock hour position	3 h
Identification colour	Green

Downloads

Product data sheet

Description

CEE-flanged plug straight 70x70mm 16A 2p 24/42VAC 400Hz IP44 TWIST
housing material: PA6
rated current: 16A
number of poles: 2 (2P)
clock-position: 3h
rated voltage/frequency: 24/42V~ / 400Hz
contacts: brass nickel plated
connection technology: screw terminals
dimensions (flange/fixing center): 70x70 mm / 56x56 mm
IP protection class: IP44
