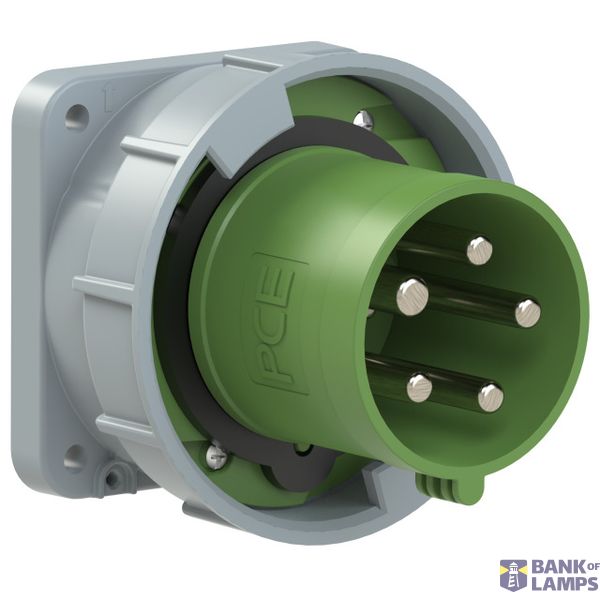

CEE-flanged plug straight 63A 5p 2h IP67 POWER TWIST

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-flanged plug straight 63A 5p 2h IP67 POWER TWIST
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Nickel-plated
IEC-amperage	63 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP67
Voltage according to EN 60309-2	50-500 V (>300-500 Hz) green

Packing details

Packing level 1

9003399084881

Other Technical data

Construction type	Built-up device plug
Number of poles	5
Angle of plug	Straight
Clock hour position	2 h
Identification colour	Green

Downloads

Product data sheet

Description

CEE-flanged plug straight 63A 5p 2h IP67 POWER TWIST
housing material: PA6
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 2h
rated voltage/frequency: >50V~ / 300-500Hz
contacts: brass nickel plated, with pilot pin
connection technology: frame terminals with screws
dimensions (flange/fixing center): 100x100 mm / 80x80 mm
IP protection class: IP66/IP67
