  • CEE-flanged plug angled 16A 3p 2h IP44

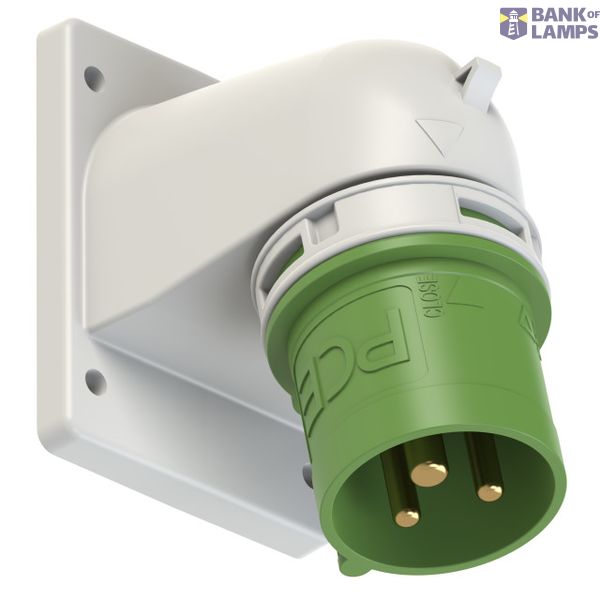

MD01 image 1
PCE

CEE-flanged plug angled 16A 3p 2h IP44

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE-flanged plug angled 16A 3p 2h IP44
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001319
Material Plastic
Surface treatment contacts Untreated
IEC-amperage 16 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP44
Voltage according to EN 60309-2 50-500 V (>300-500 Hz) green

Packing details

Packing level 1 9003399742361

Other Technical data

Construction type Built-up device plug
Number of poles 3
Angle of plug Angled
Clock hour position 2 h
Identification colour Green

Downloads

Product data sheet

Description

CEE-flanged plug angled 16A 3p 2h IP44
housing material: PC/ABS
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 2h
rated voltage/frequency: >50V~ / 300-500Hz
contacts: brass
connection technology: screw terminals
IP protection class: IP44
