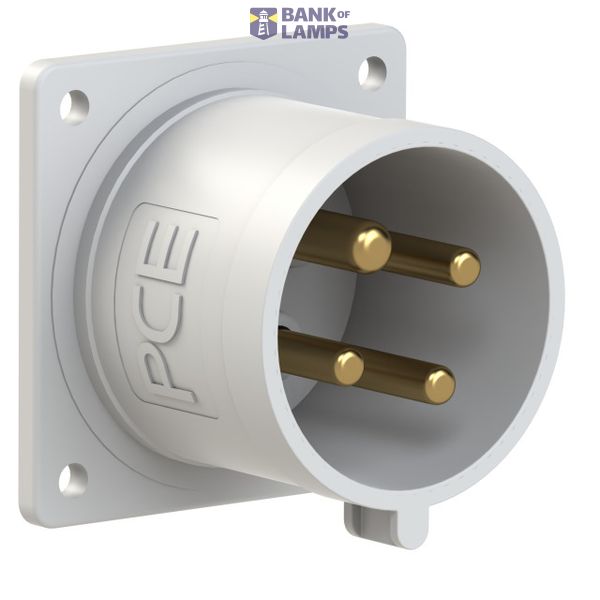

CEE-flanged plug 70x70 straight 32A 4p 1h IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-flanged plug 70x70 straight 32A 4p 1h IP44
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001319
Material	Plastic
Surface treatment contacts	Untreated
IEC-amperage	32 A
Connection system	Screwed terminal
Contact material	CuZn
Degree of protection (IP)	IP44
Voltage according to EN 60309-2	Other

Packing details

Packing level 1

9003399756399

Other Technical data

Construction type	Built-up device plug
Number of poles	4
Angle of plug	Straight
Clock hour position	1 h
Identification colour	Grey

Downloads

Product data sheet

Description

CEE-flanged plug 70x70 straight 32A 4p 1h IP44
housing material: PA6
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 1h
rated voltage/frequency: >50V / others
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 70x70 mm / 56x56 mm
IP protection class: IP44
