CEE-Caravan Adapter 16A 3p 6h mit FI Schutzschalter 30mA, St. Anton IP44

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-Caravan Adapter 16A 3p 6h mit FI Schutzschalter 30mA, St. Anton IP44
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399408199

Other Technical data

Colour	Black
Number of socket outlets with protective contact (type F)	1
Cable length	1.5 m
Protection	Other
Housing material	Plastic
Leakage current type	A
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 16 A
Number of poles mains connection	3

Downloads

Product data sheet

Description

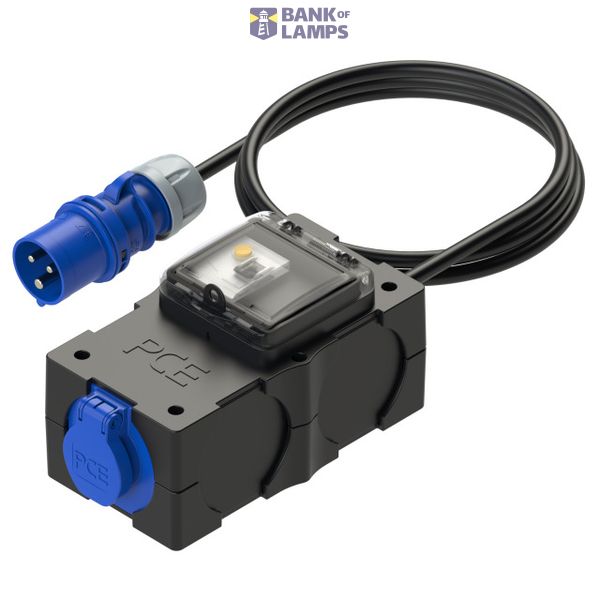

CEE-Caravan adapter 16A 3p 6h with RCD 30mA, St. Anton IP44
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
Entry: 1,5m cable (H07RN-F 3G1,5) with plug 16A 3p 6h
Outlet: safety socket (Austrian/German System) 2P+E 16A 250V
protection: Fi 25A/2/0,03A/Typ A 25AT
ready wired
IP protection class: IP44
