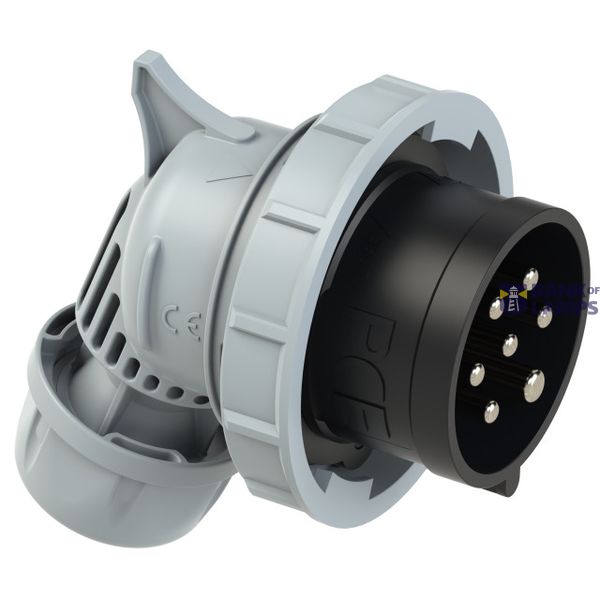

CEE angled plug 16A 7p 7h IP66/IP67

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE angled plug 16A 7p 7h IP66/IP67
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC000140
Number of poles	7
IEC-amperage	16 A
Connection system	Screwed terminal
Degree of protection (IP)	IP67

Packing details

Packing level 1

9003399526466

Other Technical data

Cable entry	Gland nut
Material	Plastic
Angle of plug	Angled
Clock hour position	7 h
Identification colour	Black
Voltage according to EN 60309-2	500 V (50+60 Hz) black

Downloads

Product data sheet

Description

CEE angled plug 16A 7p 7h IP66/IP67
housing material: PC/ABS
rated current: 16A
number of poles: 7 (6P+PE)
clock-position: 7h
rated voltage/frequency: 480-500V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
IP protection class: IP66/IP67
