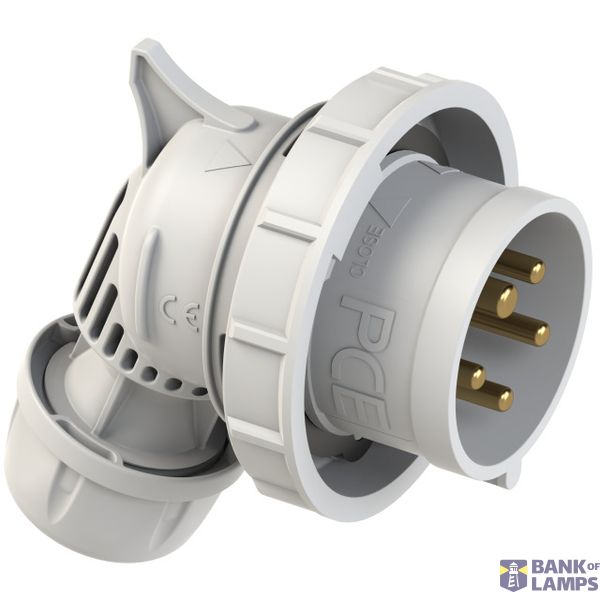

CEE angled plug 16A 5p 1h IP67 TWIST

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CEE angled plug 16A 5p 1h IP67 TWIST
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC000140
Number of poles 5
IEC-amperage 16 A
Connection system Screwed terminal
Degree of protection (IP) IP67

Packing details

Packing level 1 9003399500879

Other Technical data

Cable entry Gland nut
Material Plastic
Surface treatment contacts Untreated
Angle of plug Angled
Contact material CuZn
Clock hour position 1 h
Identification colour Grey
Voltage according to EN 60309-2 Other

Downloads

Description

CEE angled plug 16A 5p 1h IP67 TWIST
housing material: PC/ABS
rated current: 16A
number of poles: 5 (3P+N+PE)
clock-position: 1h
rated voltage/frequency: >50V / others
contacts: brass
connection technology: screw terminals
IP protection class: IP67
