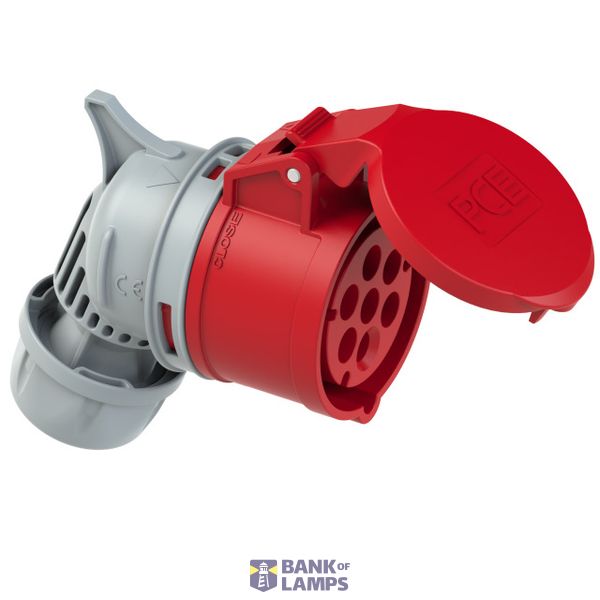

CEE-angled connector 16A 7p 6h IP44/IP54

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CEE-angled connector 16A 7p 6h IP44/IP54
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001320
IEC-amperage	16 A
Connection system	Screwed terminal
Degree of protection (IP)	IP54
Voltage according to EN 60309-2	400 V (50+60 Hz) red

Packing details

Packing level 1

9003399331466

Other Technical data

Cable entry	Gland nut
Number of poles	7
Material	Plastic
Angle of plug	Angled
Clock hour position	6 h
Identification colour	Red

Downloads

Product data sheet

Description

CEE-angled connector 16A 7p 6h IP44/IP54
housing material: PC/ABS
rated current: 16A
number of poles: 7 (6P+PE)
clock-position: 6h
rated voltage/frequency: 380-415V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
IP protection class: IP44/IP54
