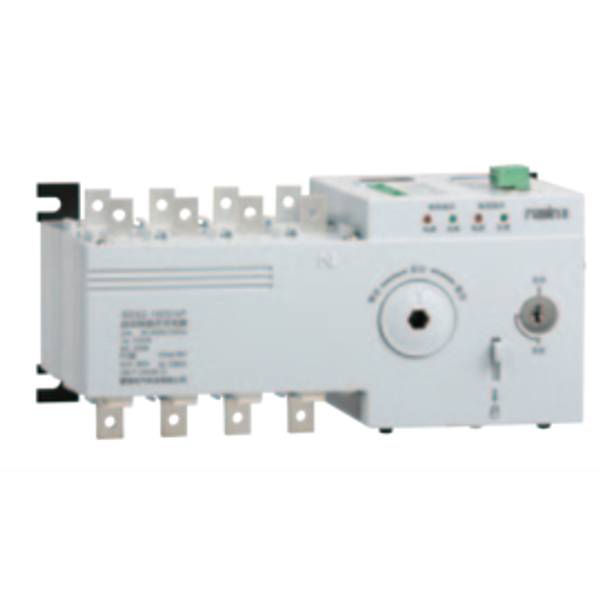

CDTS-63-4 - TRANSFER SWITCH
Order only
Price (excl. VAT):
324,45 €
EAN: 8426487588053
MPN: 0134872
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CDTS-63-4 - TRANSFER SWITCH |
| Brand | CRADY |
| Categories |
Circuit breakers 25A
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 1010 90 |
| Rated current | 25 A |
| Release characteristic | C |
| Width in number of modular spacings | 100 |
| Number of poles (total) | 4 |
Packing details
| Packing level 1 | 8426487588053 |
Other Technical data
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 4 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | 4 mm² |
| Connectable conductor cross section multi-wired | 4 mm² |
| Ambient temperature during operating | - °C |
| Flush-mounted installation | No |
| Additional equipment possible | Yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 36 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 36 kA |
