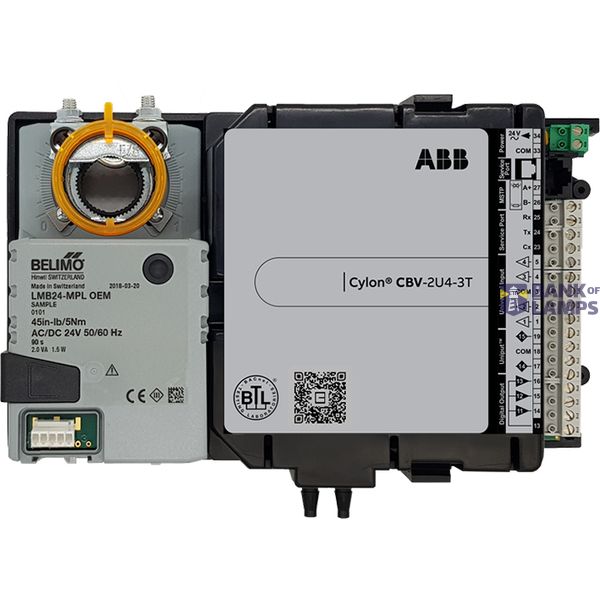

CBV-2U4-3T-IMP B-AAC VAV Ctlr w/act (US) image 1

CBV-2U4-3T-IMP B-AAC VAV Ctlr w/act (US) image 2

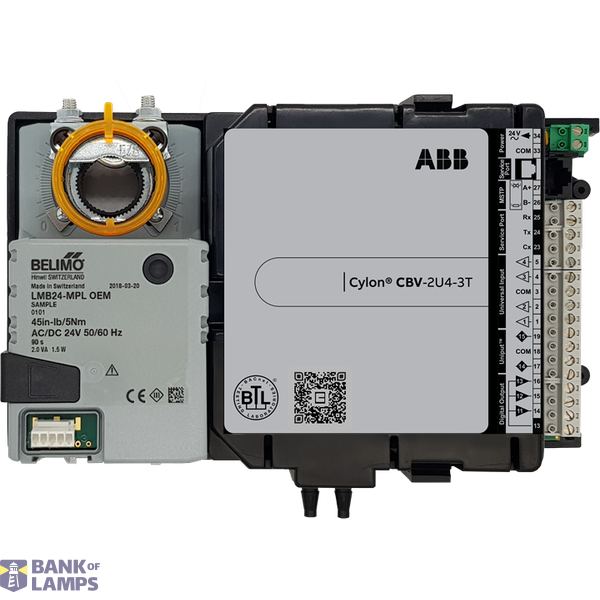

CBV-2U4-3T-IMP B-AAC VAV Ctlr w/act (US) image 3

CBV-2U4-3T-IMP B-AAC VAV Ctlr w/act (US)

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CBV-2U4-3T-IMP B-AAC VAV Ctlr w/act (US)
Brand	ABB
Harmonized System Code	9032 8900 00
ETIM	EC011487
Number of digital inputs	0
Number of digital outputs	0
Number of analogue inputs	0
Number of analogue outputs	0
Number of controller channels	0

Packing details

Packing level 1

5391539123021

Other Technical data

Width	180 mm
Height	50 mm
Depth	123 mm

Description

BACnet B-AAC single-duct VAV terminal unit controller with integrated actuator. Controller features 2 UniPutsTM (software configured for AI, AO, DI or DO), 4 UI and 3 DO (Triac). Built-in differential pressure transducer (0-1.3"w.c., 0...320 Pa) and actuator (45in-lb, 5 Nm). Freely programmable, c/w pre-loaded factory configuration strategy with imperial units (degF).
