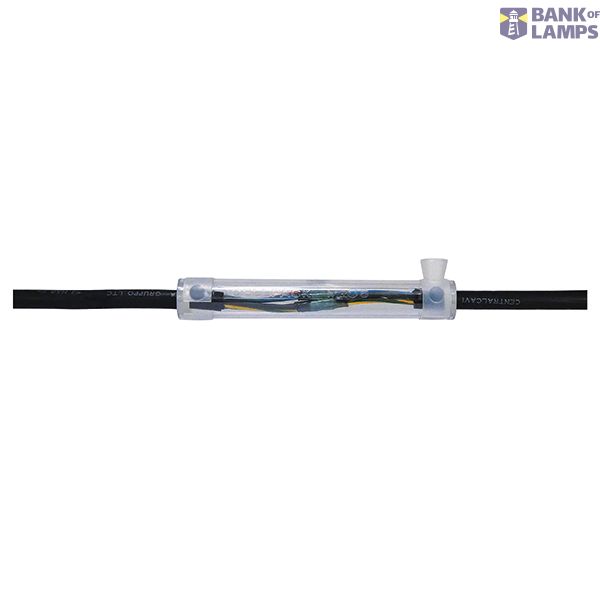

Cast resin straight-through joint, for small cross sections and control cables and signal cables
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | Cast resin straight-through joint, for small cross sections and control cables and signal cables |
| Brand | CellPack |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 3909 5090 00 |
| ETIM | EC001169 |
| Model | Cast resin |
| Suitable for | N(A)YY |
| Material insulating material | Plastic |
| With connection accessories | None |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
Packing details
| Packing level 1 | 4010311000008 |
| Packing level 2 | 4010311000008 |
Other Technical data
| Halogen free | Yes |
| Number of conductors | 5 |
| Mining sector approval | No |
| With concentric shielding | No |
| With protective conductor | Yes |
| Nominal cross section conductor | 0.8-2.5 mm² |
| For connection of paper- with plastic insulated cables | No |
Downloads
Description
Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT). With hydrolysis resistance PUR cast resin EG. Suitable for compression connectors on copper and aluminium conductors.
