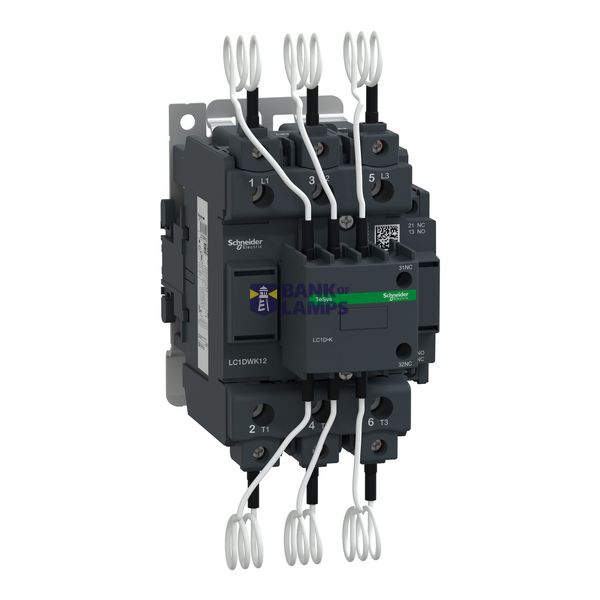

Capacitor Contactor TeSys Deca 63kVAR 400–415V

Order only

Price (excl. VAT):

193,85 €

This price is valid until 24.12.26

EAN: 3389110060461

MPN: LC1DWK12F7

Package: 1

Box: 4

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Capacitor Contactor TeSys Deca 63kVAR 400–415V
Brand	Schneider Electric
Categories	Capacitor Contactors
Harmonized System Code	8536 4900 00
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	110 V
Voltage type for actuating	AC

Packing details

Packing level 1	3389110060461
Packing level 2	3389110060469

Other Technical data

Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	2
Type of electrical connection of main circuit	Screw connection
Rated blind power at 400 V, 50 Hz	63 kvar

Downloads

ECOP (Environmental Code of Practice) Declaration DOC CE (Declaration of conformity CE) Technical manual Declaration EPD (Environmental Product Declaration) Mounting instruction

Description

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 110V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
