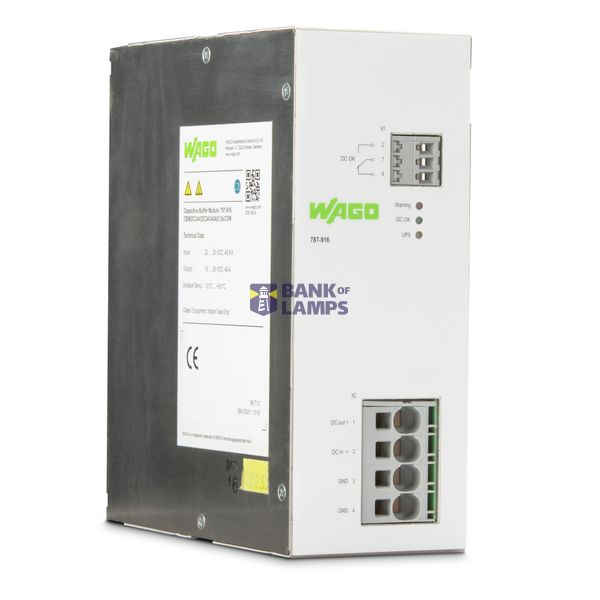

Capacitive buffer module

Name: Capacitive buffer module
Brand: WAGO
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Capacitive buffer module
Brand	WAGO
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC002540
Width	68 mm
Height	162 mm
Depth	181 mm
Voltage type of supply voltage	DC
Rail mounting possible	TRUE
Wall mounting possible	FALSE
1st secondary output voltage	20-29 V
Max. output current 1	40 A
Nominal value output current 1	40 A

Packing level 1

4055143825603

Modular version	FALSE
Suitable for safety functions	FALSE
Width in number of modular spacings	4
Output voltage stabilized	FALSE
Type of electric connection	Spring clamp connection
Stabilized	FALSE
Degree of protection (IP)	IP20
Direct mounting possible	FALSE
Secondary voltage adjustable	TRUE
Rated supply voltage at DC	23-30 V
Short-circuit-proof	TRUE
Nominal value output voltage 1	24 V

capacitive buffer module | 24 VDC input voltage | 24 VDC output voltage | 40 A output current | Buffer time: 0.3 6.6 s
