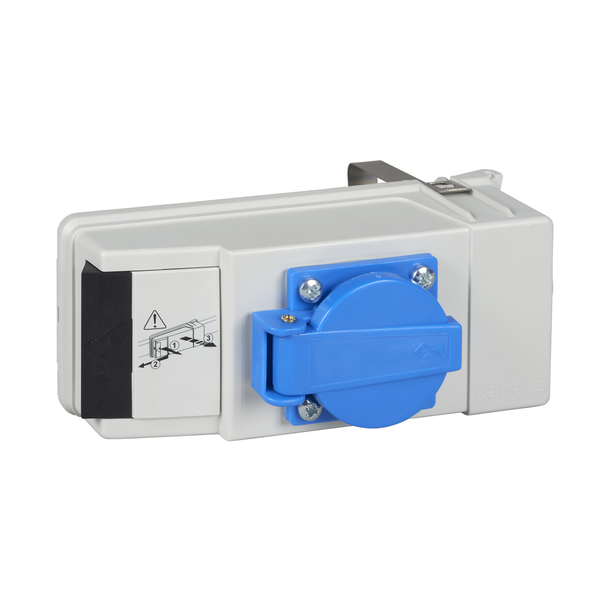

Canalis - tap-off unit - 16A - 3L+N+PE - VDE power socket - with protection
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
56,02 €
EAN: 3606480002342
MPN: KBC16DCP2
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Canalis - tap-off unit - 16A - 3L+N+PE - VDE power socket - with protection |
| Brand | Schneider Electric |
| Categories |
Busbar Systems and Accessories
|
| Country of origin | FR |
| Colour | Grey |
| Number of poles | 3 |
| Rated voltage at AC 50 Hz | 230-400 V |
| Rated current at AC 50 Hz | 16 A |
Packing details
| Packing level 1 | 3606480002342 |
Other Technical data
| Width | 53 mm |
| Height | 68 mm |
| RAL-number | 7035 |
| With adjustment | No |
| Protection | Cylindrical fuse |
| Number of conductors (without earthing) | 2 |
| Phase selection | Yes |
| Length | 160 mm |
| Degree of protection (IP) | IP55 |
| Number of CEE socket outlets | 0 |
| Number of other socket outlets | 1 |
| Branch off type | Socket outlet |
| Type of socket outlets | Socket outlet with protective contact (type F) 16 A |
| Number of NEMA socket outlets | 0 |
Downloads
Description
This is a tap-off unit with fuse protection for Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Protection is ensured by a cylindrical fuse NF 8.5x31.5 (not supplied), with 16A gG type. Polarity is 3L+PE, with mobile studs. The power socket is a 2P+T with 10/16A and 250V electrical characteristics. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
