CAELA QMA LED1000-930 CL SM WH - LED wall luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167478409
MPN: 60819094
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CAELA QMA LED1000-930 CL SM WH - LED wall luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Surface mounting lamps |
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 331 mm |
| Colour housing | Silver |
| Colour rendering index CRI | 90-100 |
| Length | 331 mm |
| Height/depth | 57 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP50 |
| Colour temperature | 3000 K |
| Max. system power | 20 W |
| Rated luminous flux according to IEC 62722-2-1 | 1100 lm |
| Luminaire efficacy | 55 lm/W |
Packing details
| Packing level 1 | 4053167478409, 4053167478409 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Asymmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 27 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 59 |
| Max. number of luminaires per miniature circuit breaker B16 | 44 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
| Power factor | 0.95 |
Downloads
Description

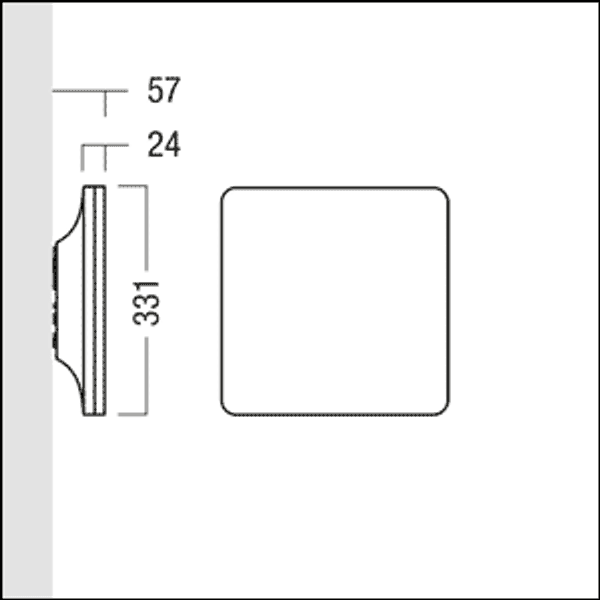

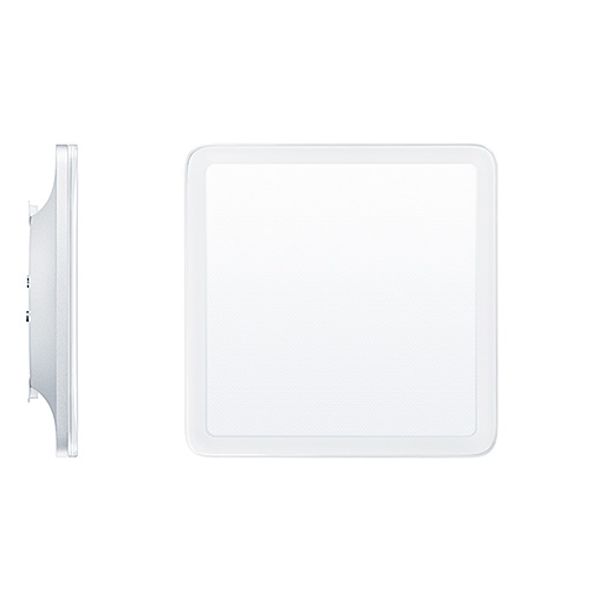

LED wall luminaire (square), ultra-flat with integrated converter; modular LED luminaire concept; cover of polymethylmethacrylate (PMMA), clear with asymmetric light distribution; lamp(s): 1/20W LED1000-930; Colour rendering Ra > 90, colour temperature 3000 K (warm white); Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 1100 lm, Luminaire efficacy: 55 lm/W; service life: 50000 h for luminous flux at 80%; control gear: LED converter ; mounting fitting of die-cast aluminium; luminaire consists of housing, cover and trim; housing of die-cast aluminium, silver matt painted; trim of polycarbonate, white painted; tool-free rapid mounting of luminaire housing with spring clips and additional safety locks; 3-pole connector terminal, through-wiring possible; Luminaire input power: 20 W; mains voltage: 220-240V/ 50/60Hz; class of protection I; luminaire wired with halogen-free leads; dimensions: 331 x 331 x 57 mm; weight: 3.5 kg
