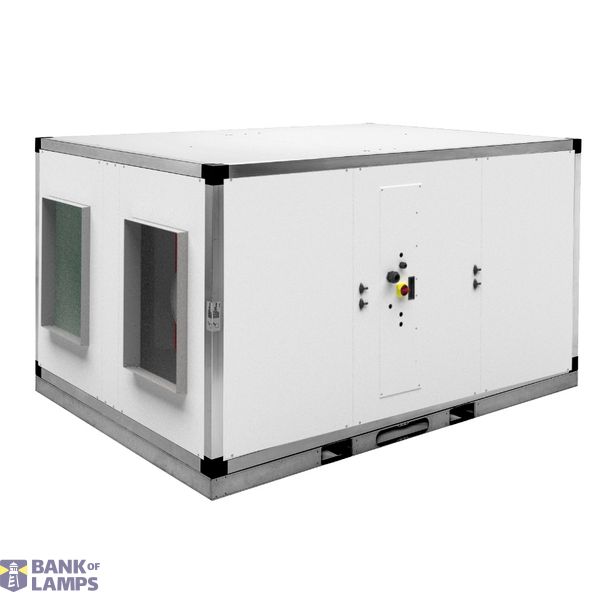

CADT-HE-DI 45 RH PRO-REG VE
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CADT-HE-DI 45 RH PRO-REG VE |
| Brand | S&P |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 9000 00 |
| ETIM | EC011286 |
| Height | 1200 mm |
| Power consumption | 2.034 kW |
| Connection | Flange |
| Frost protection circuit | Yes |
| Length | 2100 mm |
| Housing material | Plastic |
| Electrical connection | Terminals |
| With thermal protection | Yes |
| With rotational speed/frequency control | Yes |
| With roof plate | Yes |
| With condensate drain | Yes |
| With constant volume flow control | Yes |
| With constant pressure control | Yes |
| Max. air volume at 100 Pa | 5468.32 m³/h |
| Max. air volume at 150 Pa | 5329.32 m³/h |
| Max. air volume at 200 Pa | 5189.32 m³/h |
| Max. air volume at 250 Pa | 5049.78 m³/h |
| Max. air volume at 300 Pa | 4908.78 m³/h |
| Change-over system | Yes |
| Connection voltage | 3 * 400 V AC +N |
| Suitable for electronic control | Yes |
| Suitable for transformer control | No |
| Suitable for low-current control | No |
| Thermal efficiency | 92.5 % |
| With bypass | Yes |
| With support frame | Yes |
| Device emplacement | Indoor positioning |
| Nominal duct width indoor connection | 400 mm |
| Nominal duct height indoor connection | 600 mm |
| Nominal duct width, outdoor connection | 400 mm |
| Nominal duct height, outdoor connection | 600 mm |
Packing details
| Packing level 1 | 8413893012944 |
