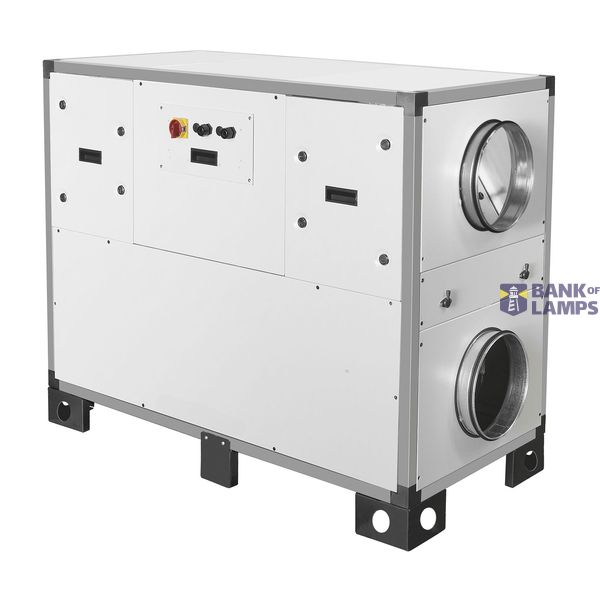

CADB-HE-DC 21 RV PRO-REG VE
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CADB-HE-DC 21 RV PRO-REG VE |
| Brand | S&P |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 5935 00 |
| ETIM | EC011286 |
| Height | 1270 mm |
| Power consumption | 0.447 kW |
| Connection | Flange |
| Frost protection circuit | Yes |
| Length | 1750 mm |
| Housing material | Steel, lined |
| Heat recovery by | Cross counter current unit |
| Type of motor | Electronically commutated (EC) |
| Electrical connection | Terminals |
| With thermal protection | Yes |
| With rotational speed/frequency control | Yes |
| With roof plate | Yes |
| With condensate drain | Yes |
| Nominal duct diameter, indoor connection | 400 mm |
| Nominal duct diameter, outdoor connection | 400 mm |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| With constant volume flow control | Yes |
| With constant pressure control | Yes |
| Max. air volume at 100 Pa | 2141.21 m³/h |
| Max. air volume at 150 Pa | 1969.21 m³/h |
| Max. air volume at 200 Pa | 1793.47 m³/h |
| Max. air volume at 250 Pa | 1607.72 m³/h |
| Max. air volume at 300 Pa | 1348.98 m³/h |
| Change-over system | No |
| Type of cooling coil | None |
| Type of heating coil | Hot water heat exchanger |
| Connection voltage | 1 x 230 V AC |
| Suitable for electronic control | Yes |
| Suitable for transformer control | No |
| Suitable for low-current control | No |
| Thermal efficiency | 94.3 % |
| With bypass | Yes |
| Fan type | Direct |
| With support frame | Yes |
| Device emplacement | Indoor positioning |
Packing details
| Packing level 1 | 8413893949493 |
