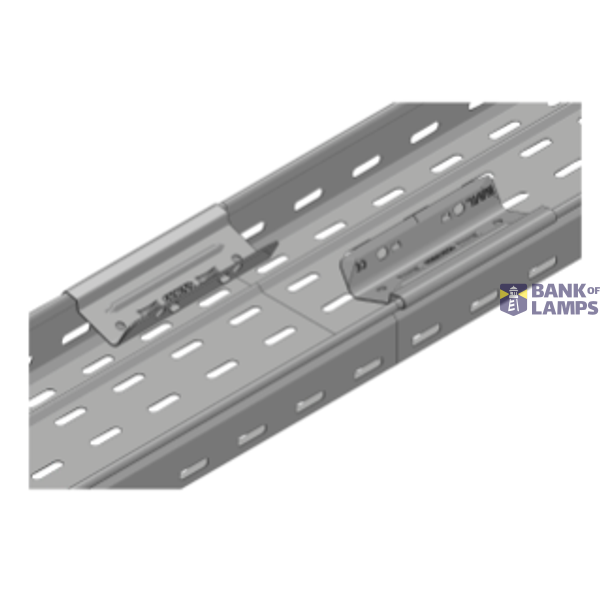

CABLE TRAY WITH TRANSVERSE RIBBING IN GALVANISED STEEL - BRN50 - PREASSEMBLED - WIDTH 395MM - FINISHING Z275
Order only
Minimal order quantity: 3
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CABLE TRAY WITH TRANSVERSE RIBBING IN GALVANISED STEEL - BRN50 - PREASSEMBLED - WIDTH 395MM - FINISHING Z275 |
| Brand | GEWISS |
| Harmonized System Code | 7216 9110 00 |
| ETIM | EC000047 |
| Width | 395 mm |
| Model | Included connector |
| Height | 50 mm |
| Material thickness | 1.1 mm |
| Side wall perforation | Yes |
| Length | 3000 mm |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Useful cross section | 19750 mm² |
| NATO-mounting holes | No |
| Suitable for circuit integrity | No |
| With cover | No |
Packing details
| Packing level 1 | 3660612339126 |
| Packing level 2 | 3660612339126 |
| Packing level 3 | 3660612339126 |
| Packing level 4 | 3660612339126 |
Other Technical data
| Colour | Zinc |
| RAL-number | 0 |
| Surface protection | Hot-dip galvanized |
| Weight | 4.234 kg/m |
| Material quality | Other |
| Stainless steel, pickled | No |
| Wide span model | No |
| Load test type according to IEC 61537 | Type III |
| Span between supports according to IEC 61537 | 1500 mm |
| Max. safe working load according to IEC 61537 | 895 N/m |
Description
BRN range MAVIL trunking made from galvanised steel - The BRN Series galvanized-steel trunking system, with rounded edges and profile, makes it particularly easy to install and safe for cable routing.
