  • Cable set 5p socket 5x2,5mm� HF-A grey 8

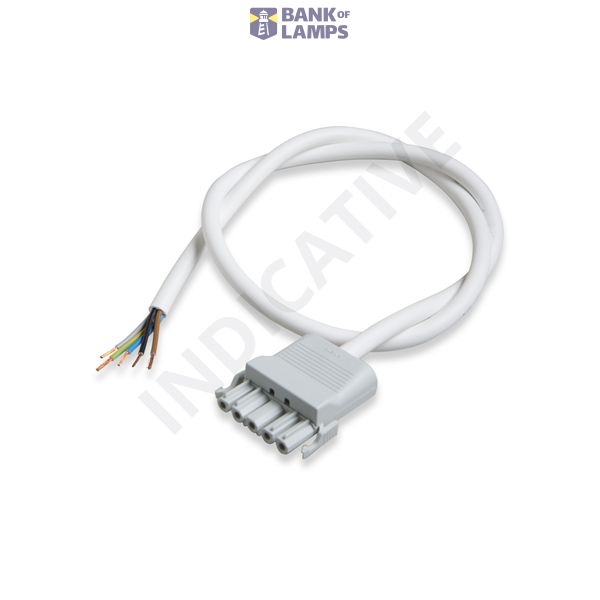

Cable set 5p socket 5x2,5mm� HF-A grey 8 image 1
Ensto

Cable set 5p socket 5x2,5mm� HF-A grey 8

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Cable set 5p socket 5x2,5mm� HF-A grey 8
Brand Ensto
ETIM EC002587
Nominal cross section conductor 2.5 mm²
Rated current 16 A
Rated voltage 250 V
Number of poles 5
Degree of protection (IP) IP20
Type of finished cable Device connection cable
Type side 1 Free conductor end
Type side 2 Bus

Packing details

Packing level 1 6438100349967
Packing level 2 6438100349967

Other Technical data

Halogen free Yes
Cable type Other
Colour housing Grey
Locking mechanism Integrated in plug-in connector
Total length 8000 mm
Colour outer sheath White
Mechanical coding Yes
Pole codification L, N, PE, D1, D2
Colour coding/contact insert Grey
Conductor end treatment Ultrasonic compressed wire ends
