  • Cable set 5p plug 5x2,5mm� HF grey 0,5m

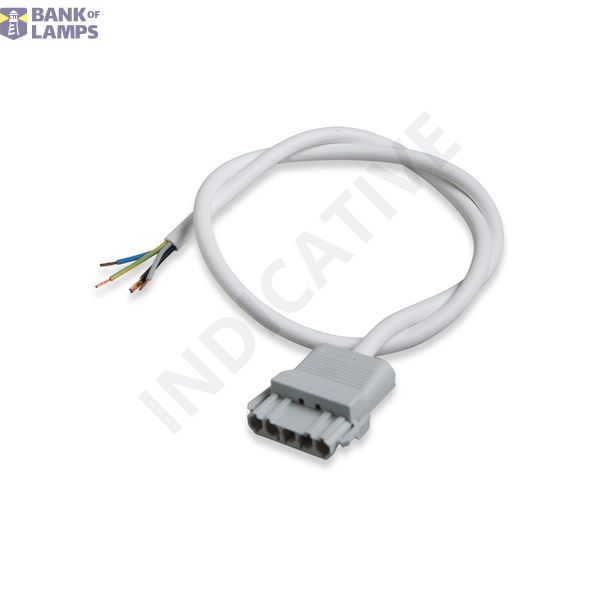

Cable set 5p plug 5x2,5mm� HF grey 0,5m image 1
Ensto

Cable set 5p plug 5x2,5mm� HF grey 0,5m

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Cable set 5p plug 5x2,5mm� HF grey 0,5m
Brand Ensto
ETIM EC002587
Rated current 16 A
Rated voltage 250 V
Number of poles 5
Degree of protection (IP) IP20
Type of finished cable Device connection cable
Type side 1 Plug
Type side 2 Free conductor end

Packing details

Packing level 1 6418677687785
Packing level 2 6418677687785

Other Technical data

Halogen free Yes
Cable type S05Z1Z1-F
Colour housing Grey
Locking mechanism Integrated in plug-in connector
Total length 500 mm
Colour outer sheath White
Surface treatment contacts Silver-plated
Mechanical coding Yes
Pole codification L, N, PE, -, +
Colour coding/contact insert Grey
Strip length 10 mm
Dismantle length 67 mm
Conductor end treatment Ultrasonic compressed wire ends
