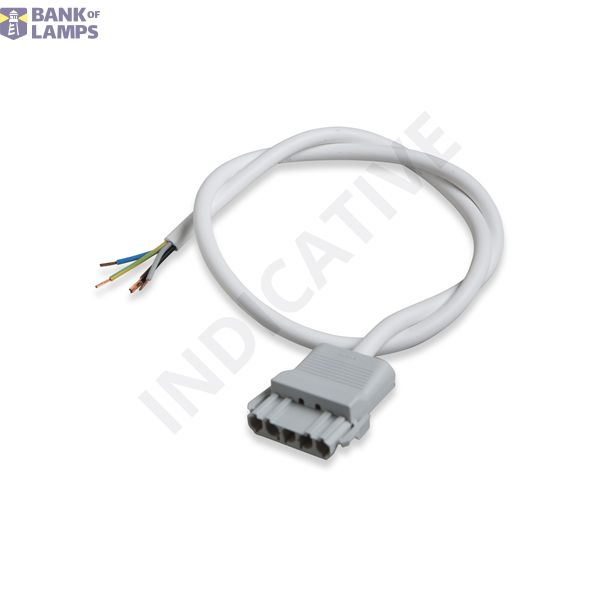

Cable set 5p plug 5x2,5mm� HF grey 0,2m

Name: Cable set 5p plug 5x2,5mm� HF grey 0,2m
Brand: Ensto
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Cable set 5p plug 5x2,5mm� HF grey 0,2m
Brand	Ensto
ETIM	EC002587
Nominal cross section conductor	2.5 mm²
Rated current	16 A
Rated voltage	250 V
Number of poles	5
Degree of protection (IP)	IP20
Type of finished cable	Device connection cable
Type side 1	Plug
Type side 2	Free conductor end

Halogen free	Yes
Cable type	S05Z1Z1-F
Colour housing	Grey
Locking mechanism	Integrated in plug-in connector
Total length	200 mm
Colour outer sheath	White
Surface treatment contacts	Silver-plated
Mechanical coding	Yes
Pole codification	L, N, PE, -, +
Colour coding/contact insert	Grey
Strip length	10 mm
Dismantle length	67 mm
Conductor end treatment	Ultrasonic compressed wire ends
