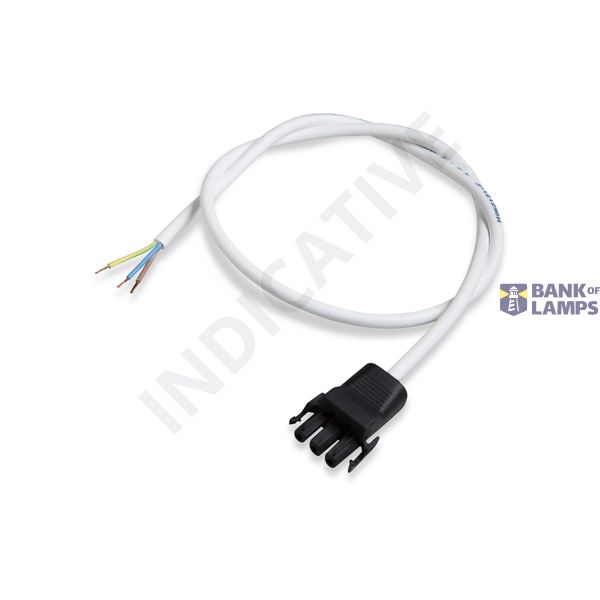

Cable set 3p socket 3x2,5mm� HF blk 6m
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Cable set 3p socket 3x2,5mm� HF blk 6m |
| Brand | Ensto |
| ETIM | EC002587 |
| Nominal cross section conductor | 2.5 mm² |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 3 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Device connection cable |
| Type side 1 | Free conductor end |
| Type side 2 | Bus |
Packing details
| Packing level 1 | 6418677722004 |
| Packing level 2 | 6418677722004 |
| Packing level 3 | 6418677722004 |
Other Technical data
| Halogen free | No |
| Cable type | S05Z1Z1-F |
| Colour housing | Black |
| Locking mechanism | Integrated in plug-in connector |
| Total length | 6000 mm |
| Colour outer sheath | White |
| Surface treatment contacts | Silver-plated |
| Mechanical coding | No |
| Pole codification | L, N, PE |
| Colour coding/contact insert | Black |

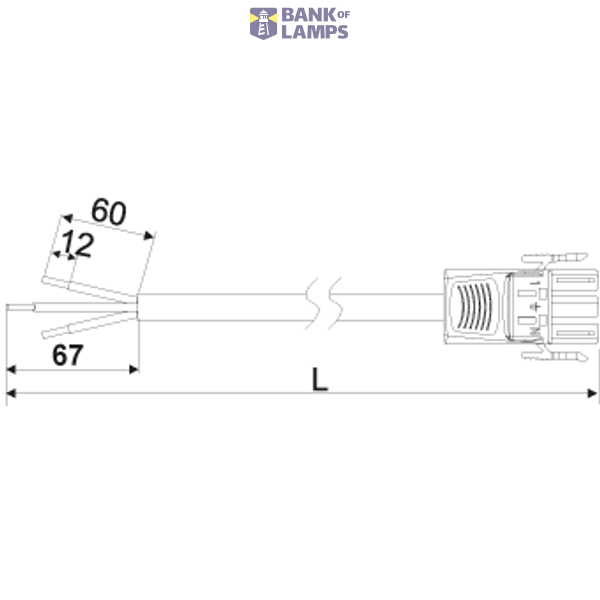

| Strip length | 10 mm |
| Dismantle length | 67 mm |
| Conductor end treatment | Ultrasonic compressed wire ends |
Description
Prefabricated cable sets are used for electrical installations in the buildings. Modular wiring solutions provide quick installation that is completely error free. Prefabricated cable products do not generate any waste at site.
