Ensto

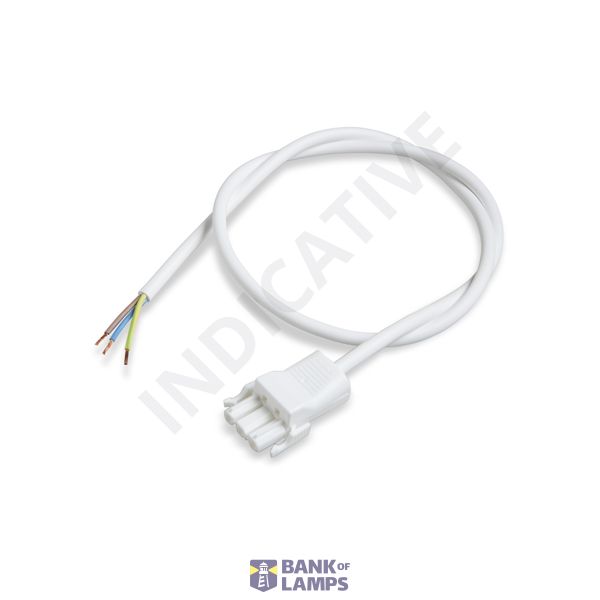

Cable set 3p socket 3x2,5mm� HF-A 1m

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Cable set 3p socket 3x2,5mm� HF-A 1m
Brand Ensto
ETIM EC002587
Nominal cross section conductor 2.5 mm²
Rated current 16 A
Rated voltage 250 V
Number of poles 3
Degree of protection (IP) IP20
Type of finished cable Device connection cable
Type side 1 Free conductor end
Type side 2 Bus

Packing details

Packing level 1 6438100348984
Packing level 2 6438100348984

Other Technical data

Halogen free No
Cable type Other
Colour housing White
Locking mechanism Integrated in plug-in connector
Total length 1000 mm
Colour outer sheath White
Mechanical coding No
Pole codification L, N, PE
Conductor end treatment Ultrasonic compressed wire ends

Description

Prefabricated cable sets are used for electrical installations in the buildings. Modular wiring solutions provide quick installation that is completely error free. Prefabricated cable products do not generate any waste at site.
