Ensto

Cable set 3p 3x2,5mm� HF blk 4m

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Cable set 3p 3x2,5mm� HF blk 4m
Brand Ensto
ETIM EC002587
Nominal cross section conductor 2.5 mm²
Rated current 16 A
Rated voltage 250 V
Number of poles 3
Degree of protection (IP) IP20
Type of finished cable Connecting cable
Type side 1 Plug
Type side 2 Bus

Packing details

Packing level 1 6418677709616
Packing level 2 6418677709616
Packing level 3 6418677709616

Other Technical data

Halogen free Yes
Cable type S05Z1Z1-F
Colour housing Black
Locking mechanism Integrated in plug-in connector

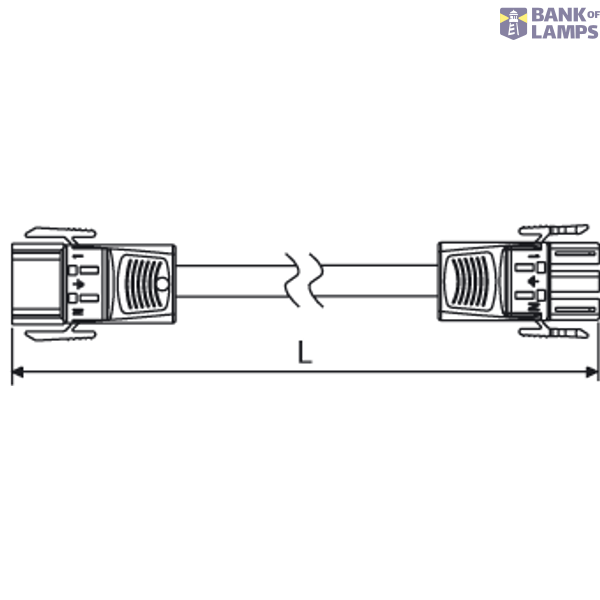

Total length 4000 mm
Colour outer sheath White
Surface treatment contacts Silver-plated
Mechanical coding Yes
Pole codification L, N, PE
Colour coding/contact insert Black

Description

Prefabricated cable sets are used for electrical installations in the buildings. Modular wiring solutions provide quick installation that is completely error free. Prefabricated cable products do not generate any waste at site.
