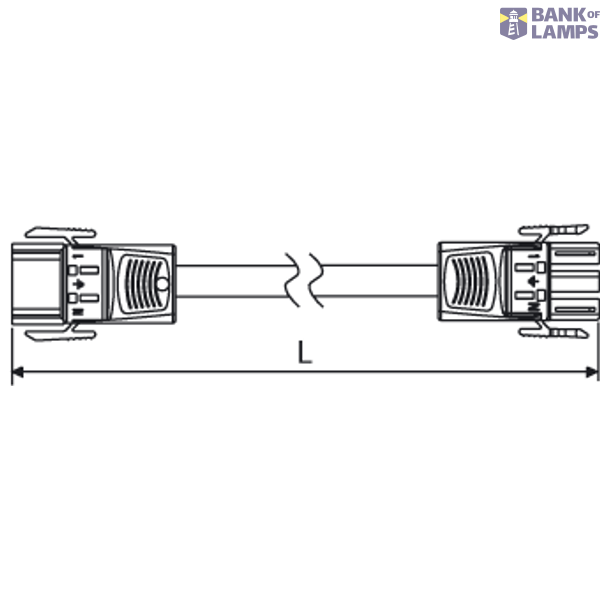

Cable set 3p 3x1,5mm� HF-A 9m image 2
Cable set 3p 3x1,5mm� HF-A 9m thumbnail 1
Cable set 3p 3x1,5mm� HF-A 9m thumbnail 2
Ensto

Cable set 3p 3x1,5mm� HF-A 9m

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Cable set 3p 3x1,5mm� HF-A 9m
Brand Ensto
ETIM EC002587
Nominal cross section conductor 1.5 mm²
Rated current 16 A
Rated voltage 250 V
Number of poles 3
Degree of protection (IP) IP20
Type of finished cable Connecting cable
Type side 1 Plug
Type side 2 Bus

Packing details

Packing level 1 6438100349561
Packing level 2 6438100349561

Other Technical data

Halogen free Yes
Cable type Other
Colour housing White
Locking mechanism Integrated in plug-in connector
Total length 9000 mm
Colour outer sheath White
Mechanical coding Yes
Pole codification L, N, PE
Colour coding/contact insert White
