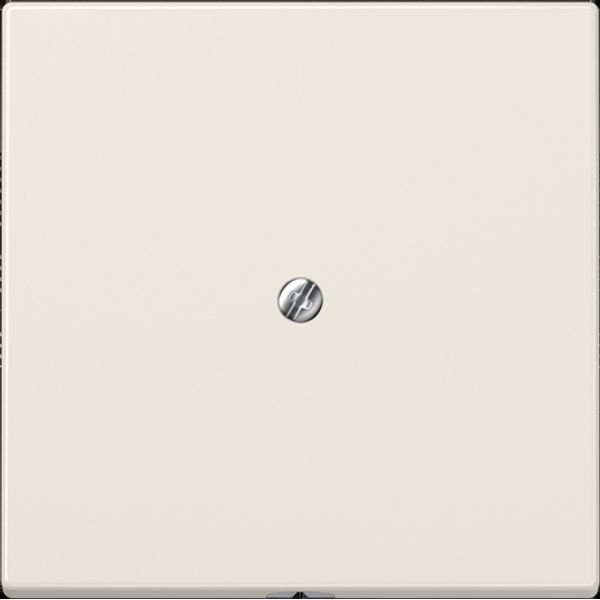

Cable outlet w.centre plate and insert LS990A image 3

Cable outlet w.centre plate and insert LS990A image 4

Cable outlet w.centre plate and insert LS990A image 5

Cable outlet w.centre plate and insert LS990A image 6

Cable outlet w.centre plate and insert LS990A image 7

Cable outlet w.centre plate and insert LS990A

Order Only Minimal order quantity: 1

Price (excl. VAT):

8,39 €

This price is valid until 31.12.25

EAN: 4011377091153

MPN: LS990A

Box: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Cable outlet w.centre plate and insert LS990A
Brand	Jung
Categories	Sockets
Country of origin	DE
Harmonized System Code	8538 9099 00
Mounting method	Flush mounted (plaster)
Assembly arrangement	Basic element with central cover plate
Halogen free	Yes
With hinged lid	No
Utilization	Cable outlet
Surface protection	Other
Outlet direction	Bottom
With strain relief	Yes
Material quality	Duroplast
Imprintable label	Without indication field
Suitable for number of connectors	0
Material	Plastic
Type of fastening	Mounting with screw
Shielded buses	No
Shielded housing	No
Luster terminal	No
RAL-number (similar)	1013
With dust cover	No
With imprint	No
With buses/couplings	No
Support ring	Yes
Transparent	No
Surface finishing	Glossy
Suitable for degree of protection (IP)	IP20
Device width	70 mm
Device height	70 mm
Device depth	0 mm
Number of modules (module system)	0
Min. depth of built-in installation box	0 mm

Packing details

Packing level 1	4011377091153
Packing level 2	4011377091153

Downloads

Product data sheet Deep link REACH

Description

Facilitates cable management in power systems.Designed for flush mounting within plastered surfaces, ensuring a clean install. Halogen-free plastic construction, specifically Duroplast.Glossy finish, RAL 1013 (similar).Surface protection classified as "Other". Mounting with screws;comes with a support ring.Outlet direction is bottom-oriented. Compatible with IP20 degree of protection setups.Suitable for single-use basic element configurations equipped with central cover plates.Device dimensions:70 mm width x 70 mm height x depth unspecified (0 mm entered).Strain relief integrated into design. Assembly excludes lighting or imprint fields but features no shielding components present in either housing or buses.
