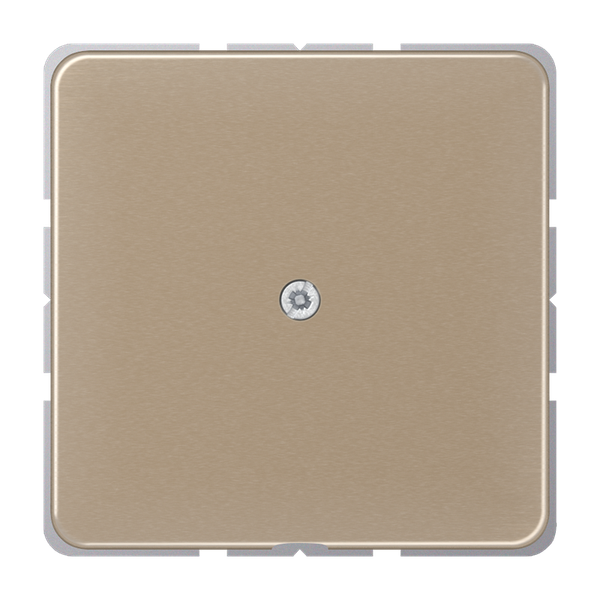

Cable outlet w.center plate and insert CD590AGB
Order only
Price (excl. VAT):
25,26 €
EAN: 4011377089457
MPN: CD590AGB
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Cable outlet w.center plate and insert CD590AGB |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with central cover plate |
| Colour | Bronze |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | Cable outlet |
| Surface protection | Anodised |
| Outlet direction | Bottom |
| With strain relief | Yes |
| Material quality | Aluminium |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 0 |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | Yes |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP20 |

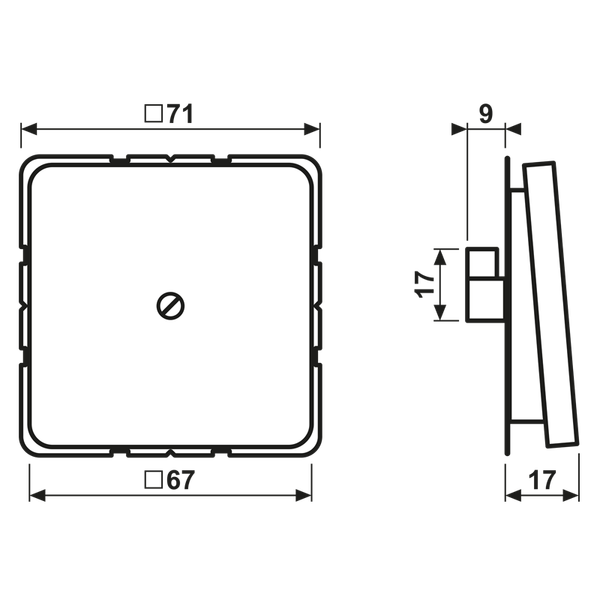

| Device width | 67 mm |
| Device height | 67 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377089457 |
| Packing level 2 | 4011377089457 |
Downloads
Description
Cable outlet functions as a basic termination point for cable management in flush-mounted electrical systems.Designed for streamlined integration into plaster installations, offering simplicity and reliability. Bronze-colored finish.Plaster flush-mounted method.Halogen-free;metal-bodied unit with anodised surface protection, glossy surface finishing.Aluminum material quality confirmed.Mounting via screws, support ring included.IP20 degree of protection suitable for indoor applications.Bottom outlet direction;no imprint field or hinged lid present in design configuration;strain relief provided on assembly-compatible parts. Dimensions:67 mm width x 67 mm height x device depth unspecified;min-depth requirement set to zero for installation boxes compatibility straightforwardness assured within standard configurations
