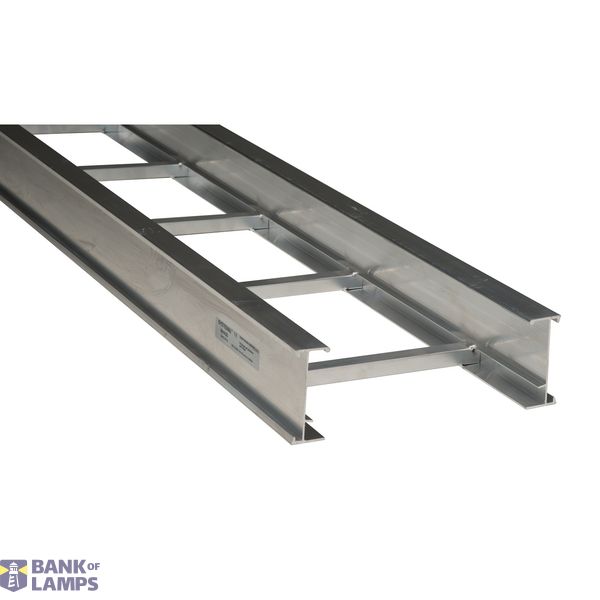

Cable ladder NH420 C4 Al 200x106x6000

Name: Cable ladder NH420 C4 Al 200x106x6000
Brand: Ensto
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Cable ladder NH420 C4 Al 200x106x6000
Brand	Ensto
ETIM	EC000854
Material quality	Other
Material	Aluminium
Suitable for circuit integrity	Yes

Packing details

Packing level 1

6438269328247

Other Technical data

Width	230 mm
Height	106 mm
Surface protection	Other
Type of rung	Imperforated profile
Side wall perforation	No
Length	6000 mm
Useful cross section	16000 mm²
Wide span model	Yes
Type of side joist	Profile (open)
Rung centre spacing	300 mm
Fixation rung	Welded

Description

The Ensto SYSTEMAL cable ladder and lighting rail system is perfect for a wide range of applications. Its sturdy aluminum structure is designed to withstand time, strain. No cost-increasing corrosion protection or maintenance is required. Aluminum is three times lighter than steel, which makes handling easier. The coating does not come off when machining, and there is no need to protect the cutting surfaces. Machining does not cause sparking and the material is easily recyclable.
