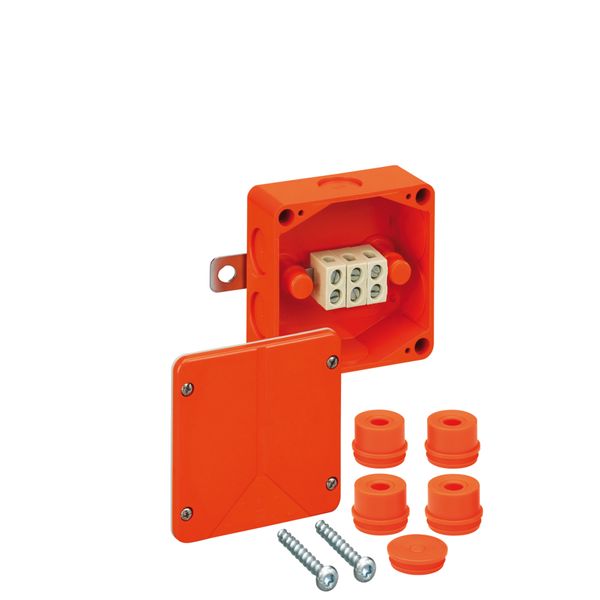

Cable junction box WKE 2 - 3 x 10²
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
110,92 €
EAN: 4013902815722
MPN: 86051201
Package: 1
Box: 12
Pallet: 648
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Cable junction box WKE 2 - 3 x 10² |
| Brand | Spelsberg |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin | DE |
| Harmonized System Code | 8536 9095 00 |
| Halogen free | Yes |
| Equipped with | Clamp |
| Rated insulation voltage Ui | 450 V |
| Sealable | Yes |
| Max. conductor cross section | 10 mm² |
| Weatherproof | Yes |
| Degree of protection (IP) | IP65 |
| Inlet from the rear | No |
Packing details
| Packing level 1 | 4013902815722 |
| Packing level 2 | 4013902815722, 4013902311620 |
| Packing level 3 | 4013902815722, 4013902307845 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | Orange |
| Width | 100 mm |
| Depth | 50 mm |
| Shape | Square |
| Surface protection | Untreated |
| Length | 100 mm |
| Circuit integrity | E90 |
| Operating temperature | -25-40 °C |
| Material | Plastic |
| Number of inlets | 6 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| For Ex-zone gas | None |
| Tackable | Yes |
| Type of housing feed-through | Preembossing |
| For Ex-Zone dust | None |
| Cover model | Other |
| Castable | No |
| With casting compound | No |
| Transparent cover | No |
| Mounting in the soil | No |
| Mounting under water | No |
Downloads
Description
Junction box and connection box with IP54 / IP65 certified acc. EN 60670, with electrical functional integrity E30-E90 acc. to DIN 4102-12, halogen-free enclosure made from special duroplastic, terminals made from high temperature-proof special ceramics, rapid mounting thanks to external fixing brackets and wall + ceiling fastening parts kit D6, Connection box 3-pole 1-10qmm, junction box 3-pole 1-4qmm, number of conductors per pole: 10 x 1q / 8 x 1.5q / 6 x 2.5q / 4 x 4q / 2 x 6q / 2 x 10q, seal range 9-18.5mm
