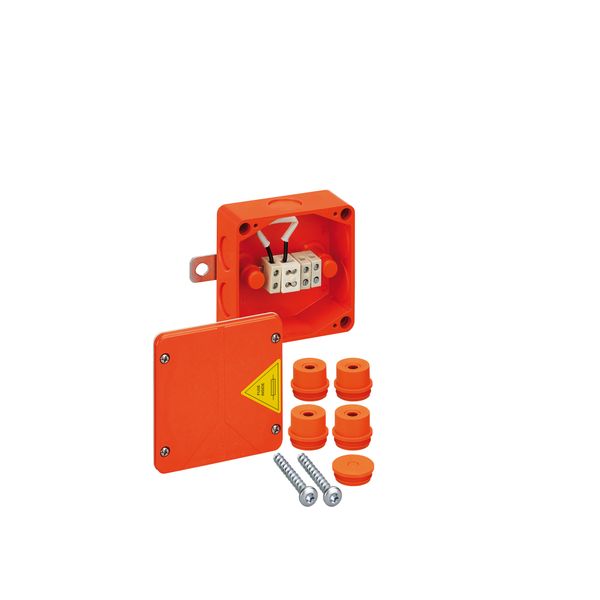

Cable junction box WKE 2 - 3/1 x 6² 1SB

Name: Cable junction box WKE 2 - 3/1 x 6² 1SB
Brand: Spelsberg
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1 Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Cable junction box WKE 2 - 3/1 x 6² 1SB
Brand	Spelsberg
Country of origin	DE
Harmonized System Code	8536 9095 00
Halogen free	Yes
Rated insulation voltage Ui	450 V
Max. conductor cross section	6 mm²
Degree of protection (IP)	IP65

Packing details

Packing level 1	4013902565597
Packing level 2	4013902565597, 4013902565603
Packing level 3	4013902565597, 4013902565610

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Orange
Width	100 mm
Depth	50 mm
Shape	Square
Surface protection	Untreated
Equipped with	Clamp
Length	100 mm
Sealable	No
Circuit integrity	E90
Operating temperature	-25-40 °C
Material	Plastic
Number of inlets	6
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
Weatherproof	No
For tube diameter	Other
Inlet from the rear	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	Other
Castable	No
With casting compound	No
Transparent cover	No
Mounting in the soil	No
Mounting under water	No

Description

Junction box and connection boxes with IP54/IP65 certified as per EN 61439-2, With intrinsic fire resistance E30 – E90 acc. To DIN 4102-12 in the bore, halogen-free enclosure made from special duroplastic, terminals made from high temperature-proof special ceramics, rapid mounting thanks to external fixing brackets and wall + ceiling fastening parts kit D6, Junction box with fused branch, 0.5-1.5qmm, 3-pin through-current box, junction box 3-pole, fuse in branch: 1 x 2 A, number of conductors per clamping point: 4 x 0.5q / 2 x 0.75q / 3 x 1q / 3 x 1.5q / 1 x 2.5q / 1 x 4q / 1 x 6q, Junction 2 A.
