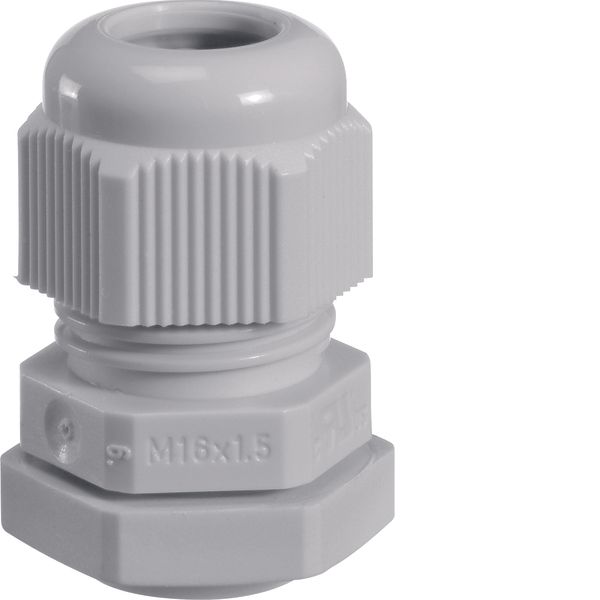

Cable gland, vector, IP65, M16
Order only
Price (excl. VAT):
1,18 €
per pcs
EAN: 3250616669512
MPN: VZ016M
Package: 1
Box: 20
Pallet: 480
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Cable gland, vector, IP65, M16 |
| Brand | Hager |
| Categories |
Standard Cable Glands
|
| Harmonized System Code | 3926 9097 00 |
| ETIM | EC000441 |
| Model | Straight |
| Thread length | 8 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Hexagon angular dimension | 22 mm |
| Suitable for cable diameter | 15-21 mm |
| Degree of protection (IP) | IP65 |
| Nominal thread size metric/PG | 16 |
Packing details
| Packing level 1 | 3250616669512 |
| Packing level 2 | 3250616669512 |
| Packing level 3 | 3250616669512 |
Other Technical data
| Colour | Grey |
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 7035 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | Yes |
| With strain relief | Yes |
| Screened | No |
| EMC-version | No |
| Glass-fibre reinforced | No |
| Operating temperature | -25-40 °C |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | Yes |
| Separable screw gland | No |
| For Ex-Zone dust | None |
| For armoured cable | No |
| Snapping in opening | No |
| Wrench width | 22 mm |
Description
Cable gland, vector, IP65, M16, plastic
