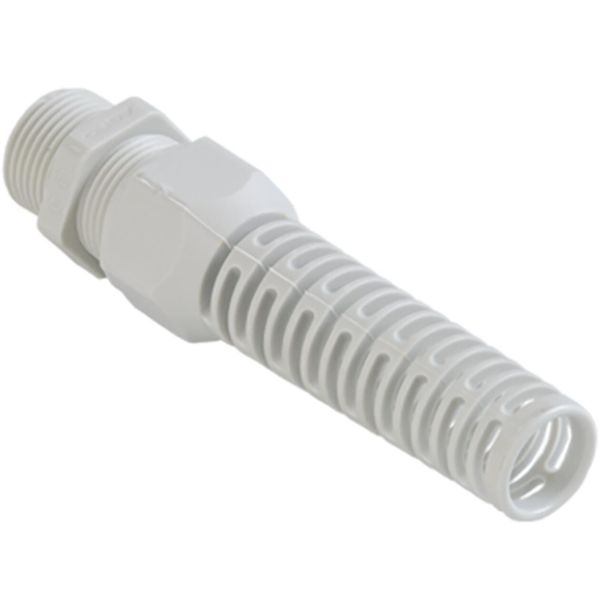

Cable gland Syntec synthetic M20x1.5 grey cable Ø5.5-12.0mm (UL 9.5-12.0mm)
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 7611614078922
MPN: 1576.20.1.12
Box: 50
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Cable gland Syntec synthetic M20x1.5 grey cable Ø5.5-12.0mm (UL 9.5-12.0mm) |
| Brand | KAISER |
| Categories |
Standard Cable Glands
|
| Country of origin | DE |
| Harmonized System Code | 3926 9097 00 |
| Model | Straight |
| Thread length | 13 mm |
| Material quality | Polyamide (PA) |
| Thread type | Metric |
| Material | Plastic |
| Suitable for cable diameter | 5.5-12 mm |
| Degree of protection (IP) | IP68 |
| Nominal thread size metric/PG | 20 |
Packing details
| Packing level 1 | 7611614078922 |
Other Technical data
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 7035 |
| Bend radius protection/trumpet flare | Yes |
| With strain relief | Yes |
| Glass-fibre reinforced | No |
| Type of sealing | Sealing ring |
| Operating temperature | -30-100 °C |
| Pitch thread | 1.5 mm |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | No |
| Separable screw gland | No |
| Wrench width | 24 mm |
Description
Cable gland Syntec synthetic M20x1.5 grey cable Ø5.5-12.0mm (UL 9.5-12.0mm)
