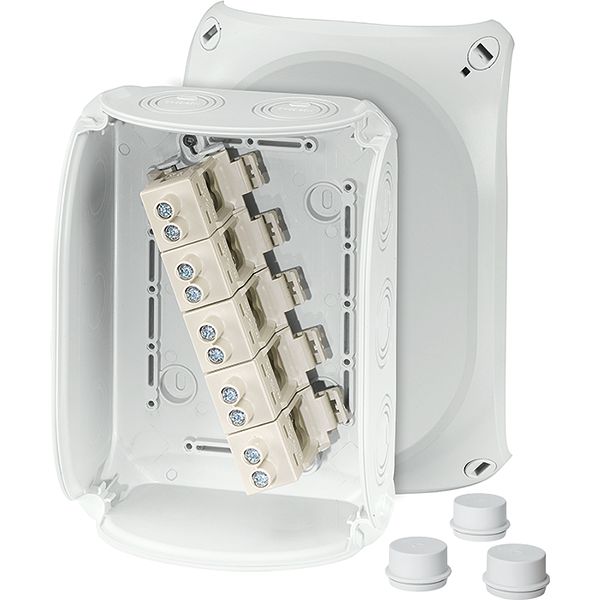

Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) image 1
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) image 2
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) image 3
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) image 4
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) thumbnail 1
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) thumbnail 2
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) thumbnail 3
Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G) thumbnail 4
HENSEL

Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G)

Order only
Price (excl. VAT):
35,24 €
This price is valid until 28.02.26
EAN: 4012591125068
MPN: 62000014
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Cable box IP66, BM5, 6-16 mm², 5 poles, input M25/32/40, Gray (DK 1616 G)
Brand HENSEL
Categories Surface Mounted Junction Boxes
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Halogen free Yes
Rated insulation voltage Ui 690 V
Sealable Yes
Max. conductor cross section 25 mm²
Weatherproof No
Degree of protection (IP) IP66
Inlet from the rear Yes

Packing details

Packing level 1 4012591125068, 4012591125068

Other Technical data

Mounting method Wall-/ceiling mounting
Colour Grey
Width 155 mm
Depth 92 mm
Shape Rectangular
Surface protection Untreated
Length 210 mm
Circuit integrity None
Operating temperature -25-40 °C
Material Plastic
Number of inlets 10
Explosion-tested version No
Cover attachment Screwed
With screening No
For tube diameter Other
For Ex-zone gas None
Tackable No
Type of housing feed-through Preembossing
For Ex-Zone dust None
Cover model Other
Castable No
With casting compound No

Downloads

Deep link REACH

Description

kabeldoos conform IEC 60670-22, met ingebouwde aansluitingsklem en metrische uitbreekpoorten. Geschikt voor installatie binnenshuis en beschermde buitenopstelling conform DIN VDE 0100, deel 737. Voor omgevingstemperaturen van maximaal +40 °C en minimaal -25 °C, bij een relatieve luchtvochtigheid van 50% bij +40 °C of 100% bij +25 °C. Materiaal temperatuurbestendig van -25 °C tot 70 °C. Brandgedrag conform IEC 60695-2-11. Gloeidraadtest: 750 °C. UL-norm: 94 V-2. Beschermingsgraad conform IEC 60529: IP 66 met kabelwartels type ADG. Nominale isolatiespanning: 690 V. Materiaal: thermoplast, halogeen- en siliconenvrij. Kleur: grijs, RAL 7035. Dekselbevestiging met snelsluiting, afsluitbaar zonder accessoires. Merk: HENSEL ENYCASE DK. Nominale doorsnede: 6-16 mm², 5-polige klem, afmetingen HxBxD = 155 x 210 x 92 mm
