Cable 25m 25mmÂ,², - Ind-plug 63A 4pole
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Cable 25m 25mmÂ,², - Ind-plug 63A 4pole |
| Brand | EATON |
| ETIM | EC001576 |
| Nominal current | 63 A |
| Nominal cross section conductor | 25 mm² |
| Connection 1 | CEE plug (IEC 60309) |
| Connection 2 | CEE coupling (IEC 60309) |
| Frequency | 50-60 Hz |
| Length | 25 m |
| Colour outer sheath | Black |
| Material outer sheath | Rubber |
| Number of cores | 4 |
| Spiralized cable | No |
| Temperature resistance | -20-40 °C |
| Nominal voltage | 380-415 V |
| Degree of protection (IP) | Other |
| With cord switch | No |
| With protective conductor | Yes |
| Connector system system-oriented | Yes |
| Oil resistant according to IEC 60811-404 | Yes |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
Packing details
| Packing level 1 | 4251510740870 |
Description

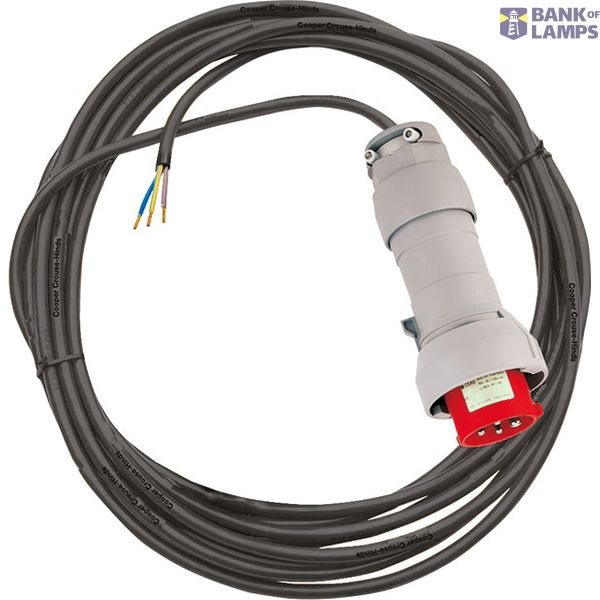

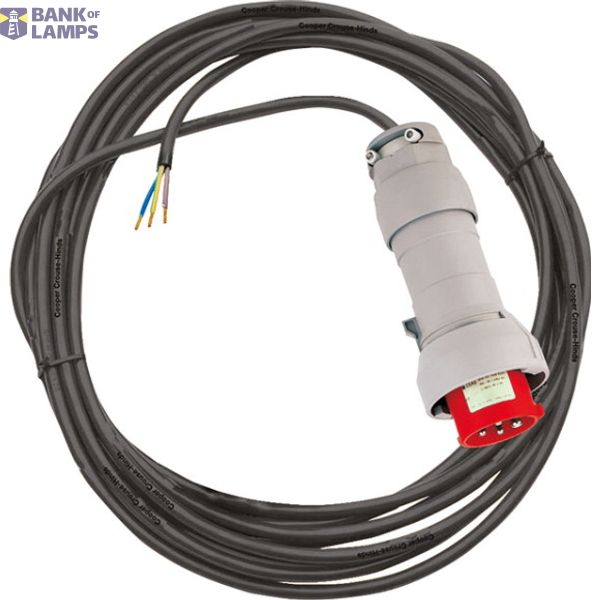

Industrial application power cord63 A power cord for 4-pole connection incl. plug, 06 h and protection cap, 380 - 415 V,25 m x 4G 25 mm²
