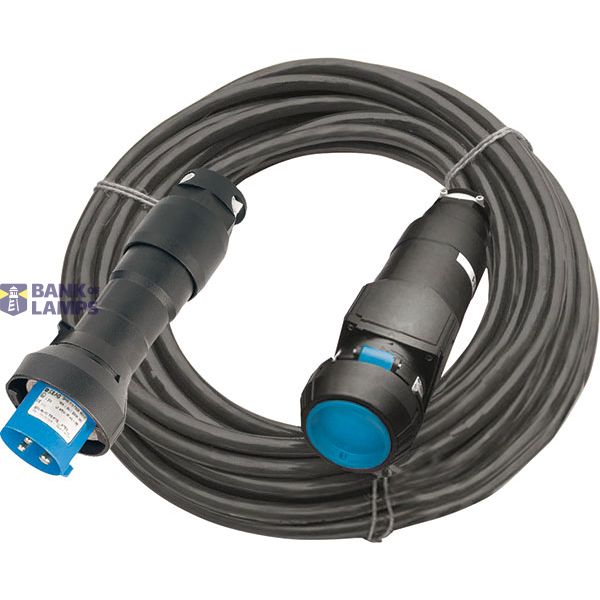

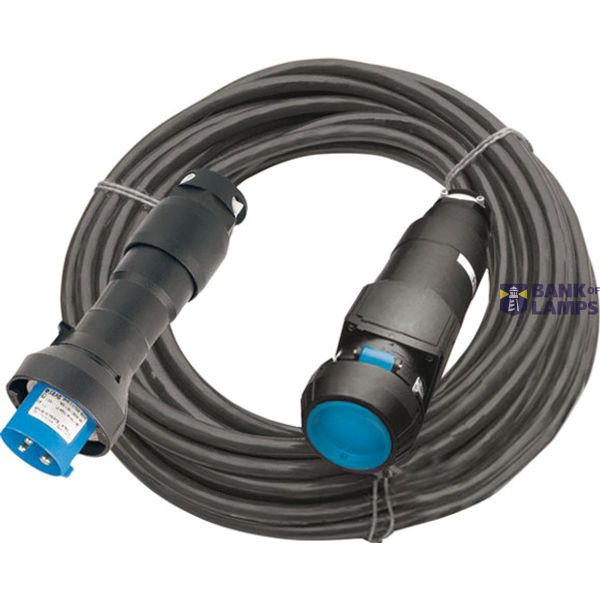

CABLE 10M 2,5MM² - EX-PLUG 16A 3POLE
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CABLE 10M 2,5MM² - EX-PLUG 16A 3POLE |
| Brand | EATON |
| ETIM | EC001576 |
| Nominal current | 16 A |
| Nominal cross section conductor | 2.5 mm² |
| Connection 1 | CEE plug (IEC 60309) |
| Connection 2 | CEE coupling (IEC 60309) |
| Frequency | 50-60 Hz |
| Length | 10 m |
| Colour outer sheath | Black |
| Material outer sheath | Rubber |
| Number of cores | 3 |
| Spiralized cable | No |
| Temperature resistance | -25-60 °C |
| Outer diameter approx. | 12.5 mm |
| Nominal voltage | 200-250 V |
| Degree of protection (IP) | Other |
| With cord switch | No |
| With protective conductor | Yes |
| Connector system system-oriented | Yes |
| Oil resistant according to IEC 60811-404 | Yes |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
Packing details
| Packing level 1 | 4251510744021 |
Description
Ex-protected extension cord16 A extension cord for 3-pole connection incl. plug & coupler, 6h, 200 - 250 V,10 m x 3G 2.5 mm²
