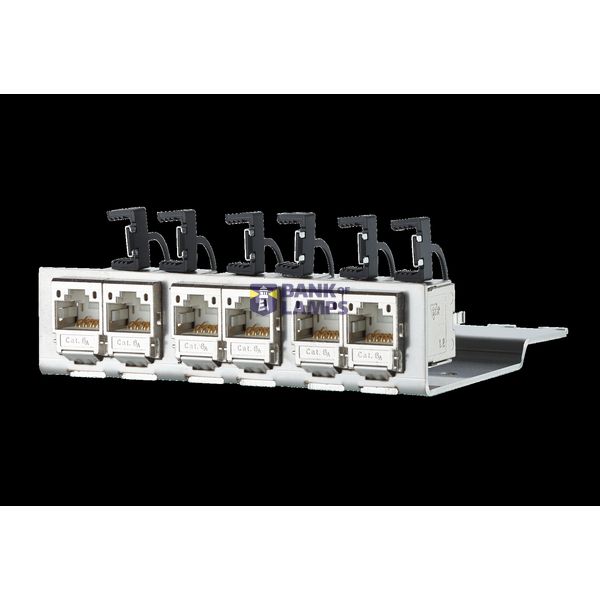

C6Amodul 6 port 180°M for 1RU

Name: C6Amodul 6 port 180°M for 1RU
Brand: METZ CONNECT
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	C6Amodul 6 port 180°M for 1RU
Brand	METZ CONNECT
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001128
Connection type	Insulation displacement connector
Screened	Yes
Suitable for number of connectors	6
Category	6A (IEC)
Type of connector	RJ45 8(8)
Number of buses/couplings	6

Packing details

Packing level 1

4250184131762, 4250184131762

Other Technical data

Mounting method	482.6 mm (19 inch) mounting
Colour	Silver
Width	110 mm
Height	28 mm
Depth	104 mm
Number of height units	1
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No

Description

Module frame with 6 individual C6, Amodul 180°certified to GHMT Cat.6, A re-embedded PVPCat.6, A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certifiedcompliance with class E, A up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1tested: component up to 600 MHz, link up to 800 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC), migration to 25G-systems without special tools, strain relief directly snapped on to stuffer cap of C6, Amodulfor mounting in surface-mounted housing, top hat rail adapter or 1RU module frame, optional strain relief using cable ties, grounding bolt M6 x 10 with nut and lock washer
