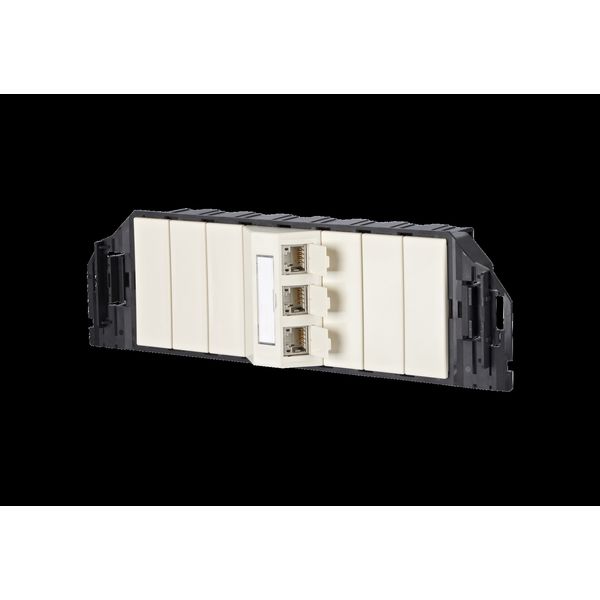

C6Amodul 3 port 180°M GB3 pearl white
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
40,45 €
EAN: 4250184131823
MPN: 130B11S30301-E
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | C6Amodul 3 port 180°M GB3 pearl white |
| Brand | METZ CONNECT |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Assembly arrangement | Basic element with full cover plate |
| Colour | White |
| RAL-number | 1013 |
| Connection type | Insulation displacement connector |
| Outlet direction | Inclined |
| Suitable for number of connectors | 3 |
| Category | 6A (IEC) |
| Duct installation | No |
| Type of fastening | Screwing |
| Shielded buses | Yes |
| Shielded housing | Yes |
| Separate strain relief | Yes |
| Separate earthing connection | No |
| Mechanical coding | No |
| Type of connector | RJ45 8(8) |
| Floor box/sub-floor mounted | Yes |
| With label space | Yes |
| Surface mounting | No |
| With dust cover | Yes |
| Compatible with third-party covers | Yes |
| With terminal resistor | No |
| With buses/couplings | Yes |
| Flush-mounted installation | No |
| Colour coding | Yes |
| Device width | 165 mm |
| Device height | 92 mm |
| Device depth | 55 mm |
Packing details
| Packing level 1 | 4250184131823, 4250184131823 |
Description
Termination unit for mounting in service outlets for underfloor systems, suitable for underfloor service outlets of OBO Bettermann (Ackermann) and some types of :hager (Electraplan Solutions), GB3 design, with C6, Amodul 180° certified to GHMT Cat.6, A re-embedded PVPCat.6, A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certifiedcompliance with class E, A up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1tested: component up to 600 MHz, link up to 800 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC), migration to 25G-systems without special tools, incl. module frame, caps and dummy covers, module plug direction 45° upwards, with label window for enclosed identification labels, label sheet 209 x 294 mm see accessory, integrated dust protection covers (also colored), color: black device casing, pearl white covers, variants: 3 ports, 6 ports, 9 ports, 12 ports
