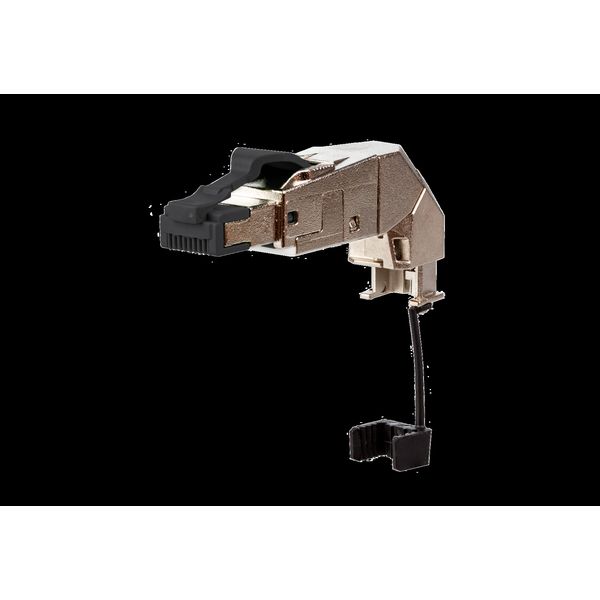

C6A RJ45 field plug pro 360
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
13,35 €
EAN: 4250184175964
MPN: 130E405042-E
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | C6A RJ45 field plug pro 360 |
| Brand | METZ CONNECT |
| Categories |
Telecommunication Distribution Components
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Model | Plug |
| Screened | Yes |
| Type of connector | RJ45 8(8) |
Packing details
| Packing level 1 | 4250184175964 |
| Packing level 2 | 4250184175964 |
Other Technical data
| Colour | Silver |
| Connection type | Insulation displacement connector |
| Category | 6A (IEC) |
| Suitable for round cable | Yes |
| Suitable for flat cable | No |
| Suitable for litz wire conductor | Yes |
| Suitable for solid core | Yes |
| AWG-range | 22-27 |
| Transparent | No |
| Special tool necessary | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Description
Cat.6, A class EA RJ45 plug to be assembled in the fieldfully shielded and multi-port capable, variable (360°) cable feed, freely selectable, easy assembly - connection without special tools, wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm, wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm, transmission characteristics Cat.6, A according to ISO/IEC 11801compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1degree of protection IP20, for cable jacket from 5.50 to 9.50 mm, zinc die-cast housing for industrial use, strain relief by latching clip directly on the stuffer cap, protected locking hook, reconnectable
