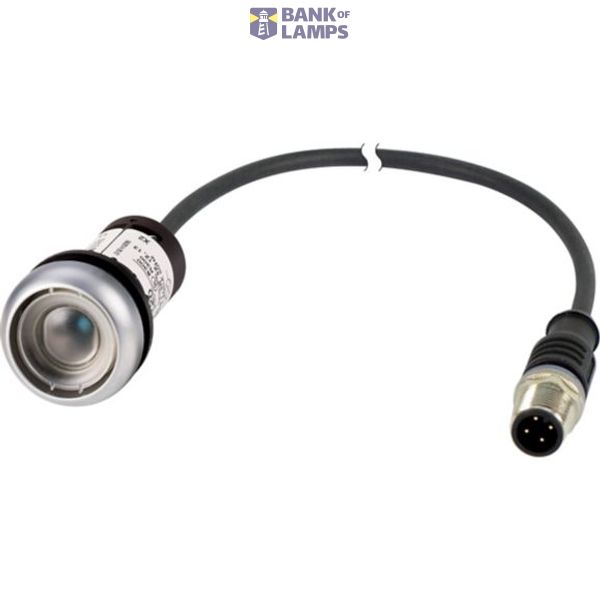

C22-DRL-XW-K10-24-P1 Eaton Moeller® series C22 Illuminated pushbutton actuator
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | C22-DRL-XW-K10-24-P1 Eaton Moeller® series C22 Illuminated pushbutton actuator |
| Brand | EATON |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5011 00 |
| ETIM | EC001028 |
| Colour button | Without button plate |
| Number of command positions | 1 |
| Type of button | Flat |
| Degree of protection (IP) | IP65 |
Packing details
| Packing level 1 | 4015081950379 |
Other Technical data
| Hole diameter | 22.5 mm |
| Suitable for illumination | Yes |
| Spring-return | No |
| Colour front ring | Titanium |
| Type of electric connection | Other |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material front ring | Plastic |
| With front ring | Yes |
| Construction type lens | Round |
| Supply voltage lamp | 24 V |
| Switching function latching | Yes |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 12 |
Description
Illuminated pushbutton actuator, Flat, maintained, 1 N/O, Cable (black) with M12A plug, 4 pole, 0.2 m, Without button plate, 24 V AC/DC, Bezel: titanium
