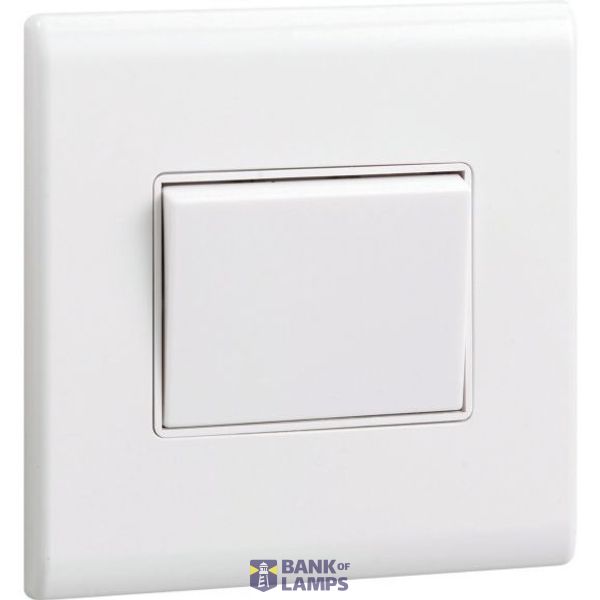

C048WH Eaton Moeller series Luxury finish range (COPA) - Wiring devices
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | C048WH Eaton Moeller series Luxury finish range (COPA) - Wiring devices |
| Brand | EATON |
| Country of origin* | IN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5007 00 |
| ETIM | EC001590 |
| Nominal voltage | 240 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with full cover plate |
| Method of operation | Rocker/button |
| Rated current | 10 A |
| Type of fastening | Screw mounting |
| Wiring system | 3-pole switch |
| Suitable for degree of protection (IP) | IP3X |
Packing details
| Packing level 1 | 5010826108533 |
| Packing level 2 | 9010238246683 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | No |
| Surface protection | Untreated |
| Built-in depth | 25 mm |
| Feedback-signal contact | No |
| Material quality | Duroplast |
| Material | Plastic |
| Number of rockers | 1 |
| RAL-number (similar) | 0 |
| Switching current for fluorescent lamps | 10 AX |
| Push button switch | Yes |
| Washing machine switch | No |
| Surface finishing | Matt |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 30 mm |
| Label space/information surface | No |
| Function lighting | Illuminated (on) |
| Number of modules (module system) | 0 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Heating switch | No |
| Anti-bacterial treatment | No |
Description
Switch, Copa, White Insert, Switches, Amperage 10 AX, Volts 250V~, No. of gang 1 Gang, 3 Pole Fan Isolator, BS EN 60669-1, IEC 60669-1, Front plate colour White, Thermoplastic, Rocker colour White, Urea, Base colour Grey, Thermoplastic, Front plate / module dimensions 87 x 87 mm, Front plate depth 6.5 mm, Fixing Centres 60.3 mm, Recommended Minimum back box depth 25 mm, Weight (kgs) 0.085 kgs, Silver, Nickel, Brass, Zinc Coated Steel with clear Passivation, Terminal capacity (L.N & E) 4 x 1.5mm², or 2 x 2.5mm², or 1 x 4.0mm² mm², Combination Head, IP20
